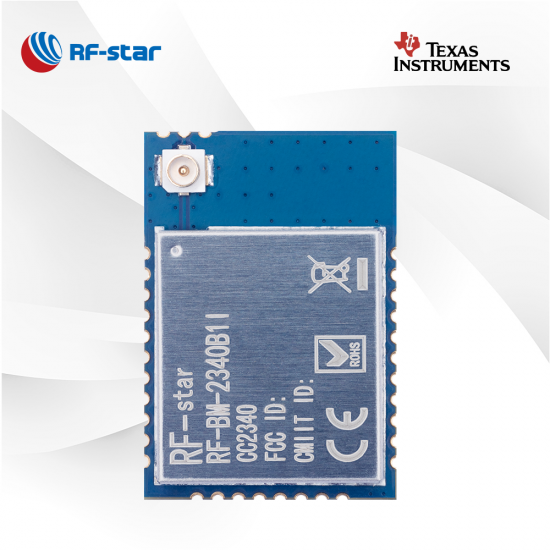

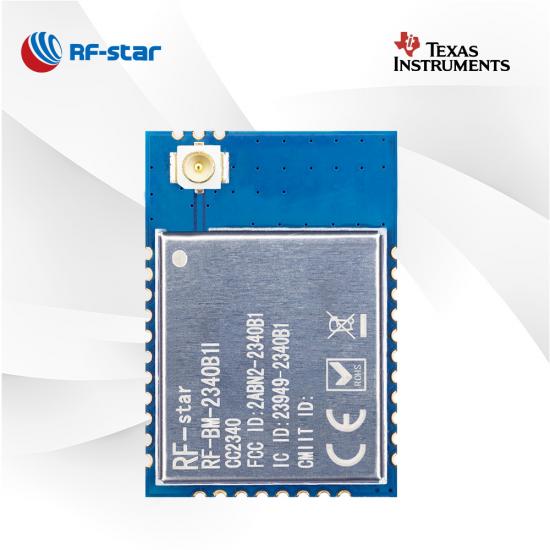

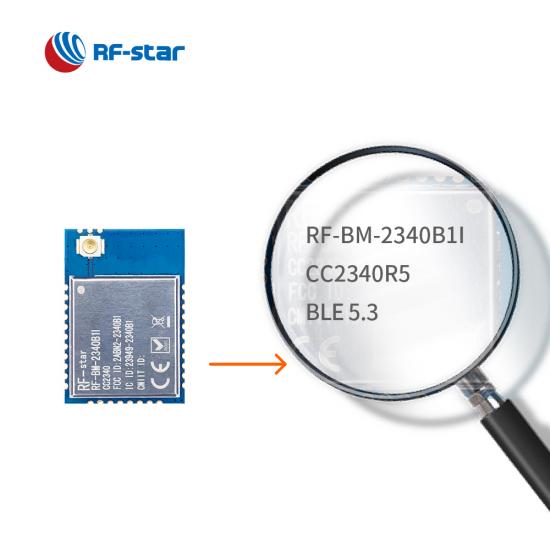

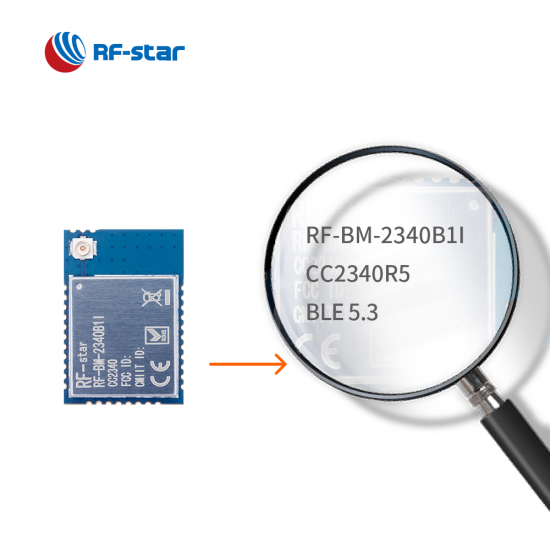

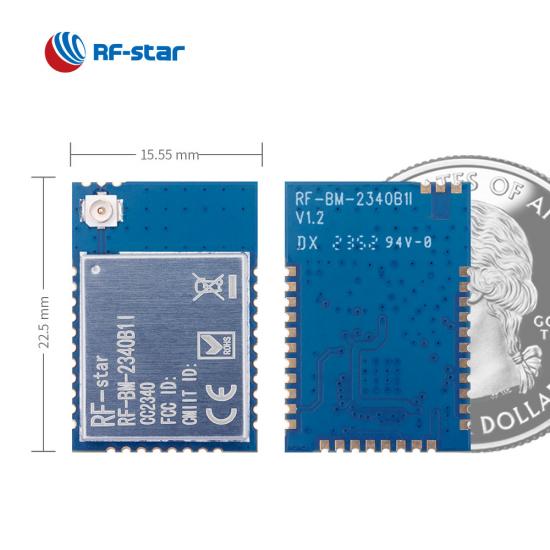

RF-BM-2340B1I BLE5.3 Module

RF-BM-2340B1I is designed as a multi-protocol module based on TI CC2340R5 for low power consumption with an IPEX antenna and 24 GPIOs, supporting Bluetooth 5.3 Low Energy, ZigBee 3.0, SimpleLinkTM TI 15.4-stack, and Proprietary system.

  • P/N:

    RF-BM-2340B1I
  • SoC:

    CC2340R5
  • Processor:

    48 MHz ARM® Cortex®-M0+
  • Protocols:

    Bluetooth 5.3 Low Energy, Zigbee 3.0, SimpleLinkTM TI 15.4-stack, Proprietary system
  • Working Frequency:

    2402 MHz ~ 2480 MHz

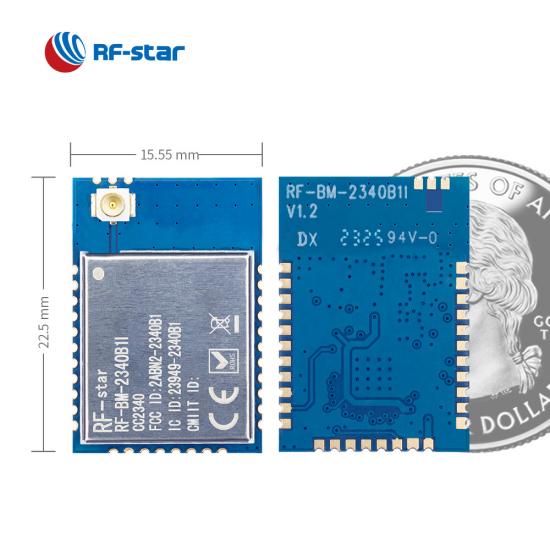

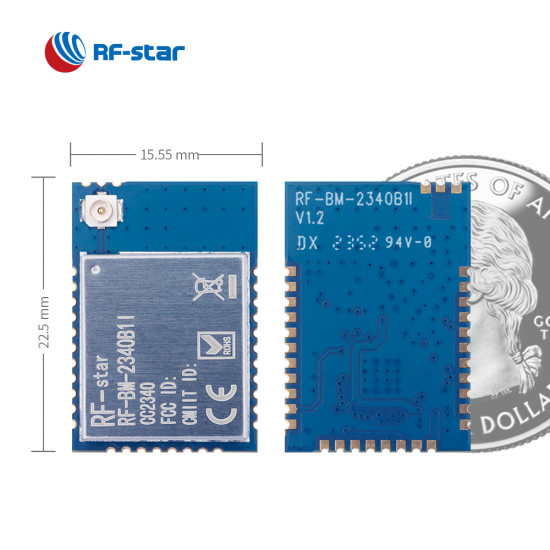

  • Package (mm):

    22.5 × 15.55 × 2.1, half-hole, 1.27 pitch, 30-pin
  • Features:

    Direction finding AoA/AoD, Bluetooth mesh (low power node), ZigBee, IPEX antenna

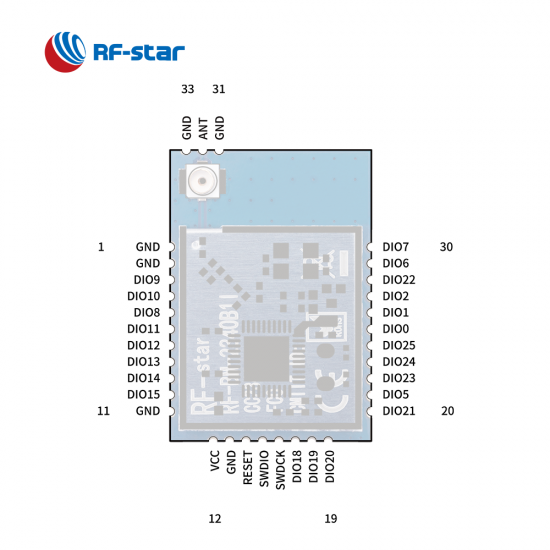

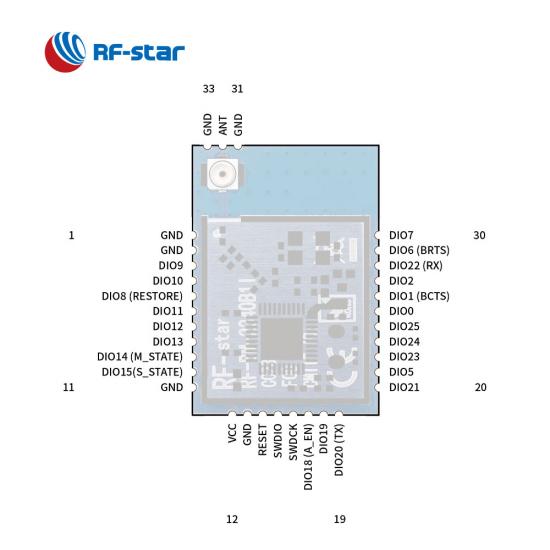

  • GPIO:

    24
  • Max. TX Power:

    +8 dBm
  • Transmission Range:

    150 m @ 1M PHY (external PCB antenna), 220 m @ LE Coded PHY (external PCB antenna)

The RF-BM-2340B1I multi-protocol module with TI CC2340R5 MCU is a new member of the CC2340Rx modules, which doesn’t only support the Bluetooth 5.3 Low Energy, but ZigBee 3.0, SimpleLinkTM TI 15.4-stack, and Proprietary system. The CC2340R5 module features a powerful 48 MHz ARM® Cortex®-M0+ processor, an IPEX antenna, and advanced peripherals, such as UART, I2C and SPI. Up to 8 dBm TX power and flexible low-power modes enable the IPEX module to adapt to a wide variety of applications with high performance, low power consumption, and long range.

Features of TI CC2340R5 BLE5.3 Module RF-BM-2340B1I

Multi-Protocol Capacity

Supporting BLE 5.3, ZigBee, SimpleLink™ TI 15.4-stack, and proprietary 2.4 GHz protocols, CC2340 modules are suitable for medical electronics, industrial electronics, etc.

Flexible RF Output Mode

The different RF output modes of the RF-BM-2340B1I module, such as the half-hole ANT RF pin and IPEX connector, are designed for longer-range applications.

Rich Resources

The CC2340R5 modules offer an in-system programmable flash of 512 KB, enough ROM for bootloader and drivers of 12 KB, and an ultra-low leakage System RAM (SRAM) of 36 KB.

Superior RF Performance

Its output power reaches up to +8 dBm with temperature compensation, and the receiving sensitivity is optimized to -96 dBm for BLE 1 Mb/s and -102 dBm for BLE Coded PHY 125 kbps.

Serial Port (UART) Protocol

RF-BM-2340B1I is embedded with the BLE5.0 transparent transmission protocol (serial port protocol) to realize rich functions with AT commands.



- Related Video -


Reference Resource:

Affordable CC2340R5 Bluetooth 5.3 Modules - In Stock Now

Intorduction of CC2340 Series Ultra-Low Power BLE Module RF-BM-2340B1

Comparison in CC2340 Bluetooth LE modules

Wireless SoC:

  • 48 MHz ARM® Cortex®-M0+ processor

  • TX power: Up to +8 dBm
  • Sensitivity:
    • -96 dBm @ 802.15.4 (2.4 GHz)

    • -102 dBm @ Bluetooth 5.0 (LE Coded PHY) (125 kbps)

  • Memory
    • 512 kB flash
    • 12 kB ROM
    • 36 KB SRAM
  • Data Rate

    • LE 1M PHY
    • LE 2M PHY
    • LE Coded PHY (long range)



Protocols:

  • Bluetooth 5.3 Low Energy

  • Zigbee 3.0

  • Proprietary

  • Bluetooth Mesh(low power node)

  • SimpleLink TMTI 15.4-stack


Operating Range:

  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C


Rich Peripherals:

  • ADC
  • UART
  • SPI
  • I2C
  • RTC
TI SimpleLink CC2340 Series Multi-Protocol Modules
Part Number RF-BM-2340B1 RF-BM-2340A1 RF-BM-2340A1I RF-BM-2340A2 RF-BM-2340A2I RF-BM-2340C2 RF-BM-2340QA2








IC CC2340R5 CC2340R5 CC2340R5 CC2340R5 CC2340R5 CC2340R5 CC2340R5-Q1
Core 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+
Antenna PCB PCB IPEX/Half-hole interface PCB IPEX/Half-hole interface Chip/Half-hole interface PCB
RAM 36 KB 36 KB 36KB 36 KB 36 KB 36 KB 36 KB
Flash 512 KB 512 KB 512 KB 512 KB 512 KB 512 KB 512 KB
Protocols

BLE5.3, ZigBee,

 SimpleLink™ TI 15.4-stack,

Proprietary systems

BLE5.3, ZigBee,

SimpleLink™ TI 15.4-stack,

Proprietary systems

BLE5.3, ZigBee,

SimpleLink™ TI 15.4-stack,

Proprietary systems

BLE5.3, ZigBee,

SimpleLink™ TI 15.4-stack,

Proprietary systems

BLE5.3, ZigBee,

SimpleLink™ TI 15.4-stack,

Proprietary systems

BLE5.3, ZigBee,

SimpleLink™ TI 15.4-stack, Proprietary systems


Bluetooth 5.3 Low Energy



Power Supply 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V
DCDC mode: 2.2 V ~ 3.8 V, 3.3 V is recommended
GLDO mode: 1.71 V ~ 3.8 V, 3.3 V is recommended
Remark: When set to DCDC mode, if the supply voltage is lower than 2.2 V, it will automatically switch to GLDO mode.
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
2360 MHz ~ 2510 MHz
Max. TX Power +8 dBm +8 dBm +8 dBm +8 dBm +8 dBm +8 dBm +8 dBm
Receiving Sensitivity


-102 dBm @ Bluetooth 125 kbps (LE Coded PHY)
-99 dBm @ Bluetooth 500 kbps (LE Coded PHY)
-96.5 dBm @ Bluetooth 1 Mbps
-92 dBm @ Bluetooth 2 Mbps


-102 dBm @ Bluetooth 125 kbps (LE Coded PHY)
-99 dBm @ Bluetooth 500 kbps (LE Coded PHY)
-96.5 dBm @ Bluetooth 1 Mbps
-92 dBm @ Bluetooth 2 Mbps
-102 dBm @ Bluetooth 125 kbps (LE Coded PHY)
-99 dBm @ Bluetooth 500 kbps (LE Coded PHY)
-96.5 dBm @ Bluetooth 1 Mbps
-92 dBm @ Bluetooth 2 Mbps
-102 dBm @ Bluetooth 125 kbps (LE Coded PHY)
-99 dBm @ Bluetooth 500 kbps (LE Coded PHY)
-96.5 dBm @ Bluetooth 1 Mbps
-92 dBm @ Bluetooth 2 Mbps
-102 dBm @ Bluetooth 125 kbps (LE Coded PHY)
-99 dBm @ Bluetooth 500 kbps (LE Coded PHY)
-96.5 dBm @ Bluetooth 1 Mbps
-92 dBm @ Bluetooth 2 Mbps
-102 dBm @ Bluetooth 125 kbps (LE Coded PHY)
-99 dBm @ Bluetooth 500 kbps (LE Coded PHY)
-96.5 dBm @ Bluetooth 1 Mbps
-92 dBm @ Bluetooth 2 Mbps
-102 dBm @ Bluetooth 125 kbps (LE Coded PHY)
-99 dBm @ Bluetooth 500 kbps (LE Coded PHY)
-96.5 dBm @ Bluetooth 1 Mbps
-92 dBm @ Bluetooth 2 Mbps
GPIO 24 12 12 12 12 12 13
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
-40 ℃ ~ +125 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Dimension (mm) 22.0 × 15.55 × 2.1 16.5 × 11.6 × 2.3 16.5 × 11.6 x 2.3 16.6 × 11.2 × 2.1 15.2 × 11.2 × 2.1 8.0 × 8.0 × 1.82 16.6 × 11.2 × 2.1
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh
Long Range
2Mbps PHY
AoA/AoD SDK is under planning SDK is under planning SDK is under planning SDK is under planning SDK is under planning SDK is under planning SDK is under planning
UART Protocol BLE√ BLE√ BLE√ BLE√ BLE√ BLE√ BLE√
Application Medical device, ESL Medical device, ESL Medical device, ESL Medical device, ESL Medical device, ESL Medical device, ESL Medical device, ESL
