RF-BM-2652P4 CC2652P7 Module with PA integrated

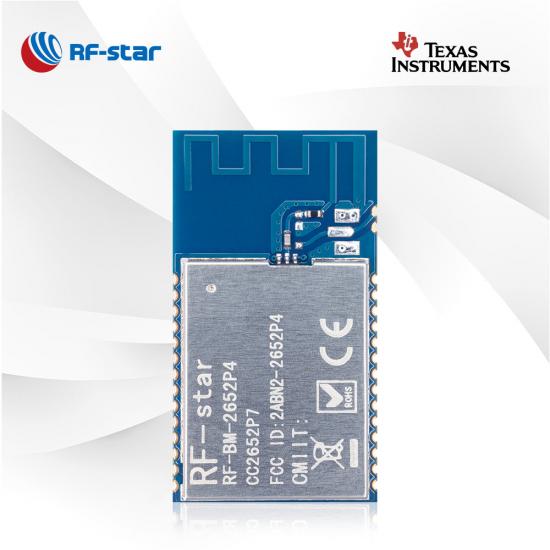

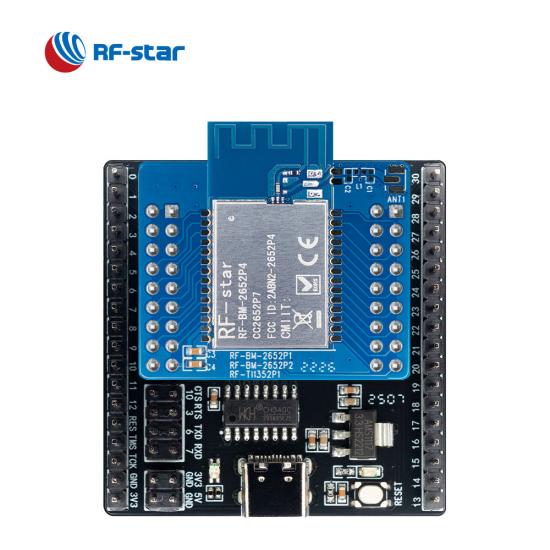

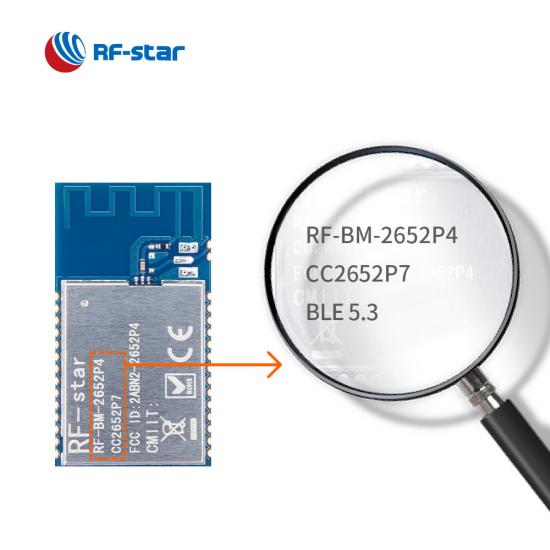

  • CC2652P7 Power Amplifier Module RF-BM-2652P4 Supporting Multi-protocol

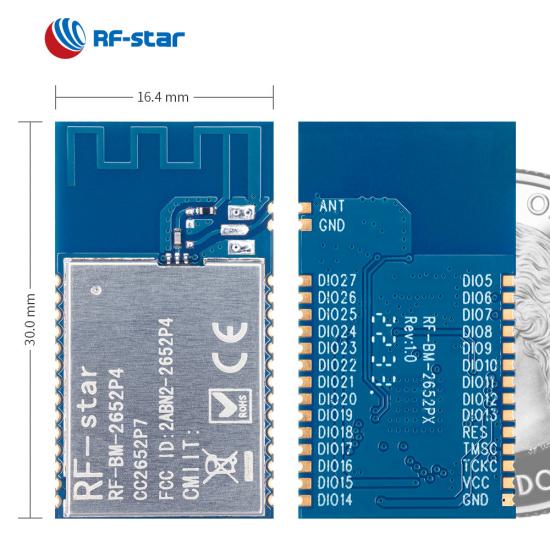

  • CC2652P7 Power Amplifier Module RF-BM-2652P4 Supporting Multi-protocol

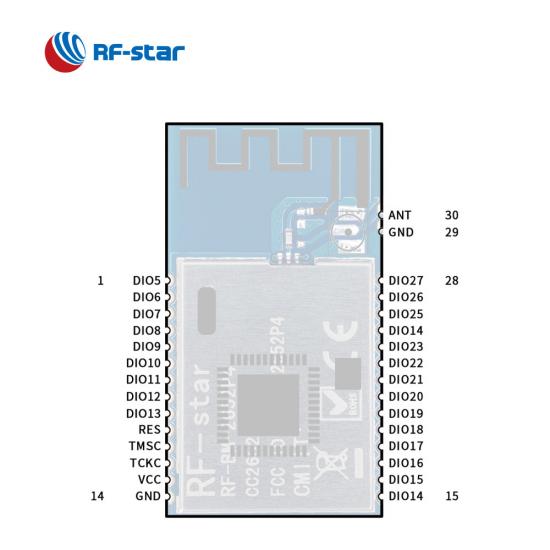

  • CC2652P7 Power Amplifier Module RF-BM-2652P4 Supporting Multi-protocol
  • CC2652P7 Power Amplifier Module RF-BM-2652P4 Supporting Multi-protocol

RF-BM-2652P4 CC2652P7 Module with PA integrated

RF-BM-2652P4 multi-protocol module is designed based on TI CC2652P7 with a 704 KB flash and a powerful processor ARM Cortex-M4F. The rich resources enable it embedded in a variety of applications with high requirements. Choose RF-star RF-BM-2652P4 with PA to be your first Matter device.

  • P/N:

    RF-BM-2652P4

  • SoC:

    CC2652P7

  • Processor:

    48 MHz ARM® Cortex®-M4F

  • Protocols:

    Matter, Bluetooth 5.3 Low Energy, Thread, Zigbee 3.0, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), proprietary

  • Working Frequency:

    2402 MHz ~ 2480 MHz

  • Package (mm):

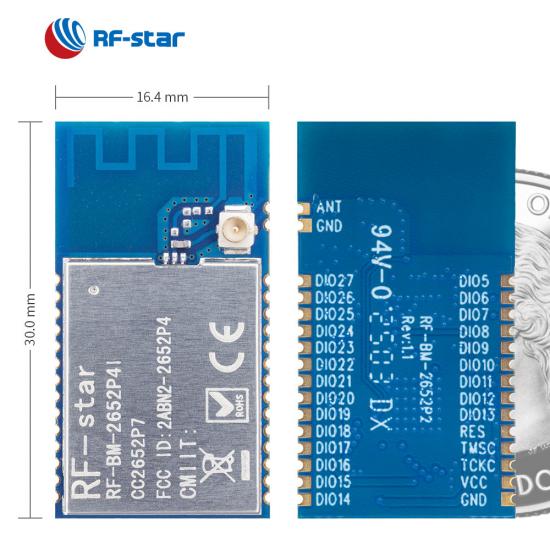

    30.0 × 16.4 × 2.2, half-hole, 1.27 pitch, 30-pin

  • Features:

    LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), Direction finding, Bluetooth mesh, Zigbee coordinator, Zigbee network processor, three kinds of RF output: PCB onboard antenna / IPEX connector / half-hole interface

  • GPIO:

    23

  • Max. TX Power:

    +20 dBm

  • Transmission Range:

    500 m (@BLE), 800 m (@ZigBee)
Inquiry Now

RF-BM-2652P4 is a multiprotocol module based on Texas Instruments CC2652P7 with a powerful processor of 48 MHz ARM® Cortex®-M4F. The maximum TX power of 20 dBm and the optional RF output modes enable it a longest transmission range and low power as you want. The 704 KB flash, 256 KB ROM and 152 KB SRAM make the integrated power amplifier module be used in many complex applications. It supports Thread, Zigbee®, Matter, Bluetooth® 5.3 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), TI 15.4-Stack (2.4 GHz), and concurrent multiprotocol through a Dynamic Multiprotocol Manager (DMM).  Hence, the 2.4GHz RF module is especially popular in grid infrastructure, matter gateway, smoke and heat detector, etc.

TI CC2652P7 multiprotocol module RF-BM-2652P4

Dynamic Multiprotocol Manager

The CC2652P7 module RF-BM-2652P4 also integrates with a DMM driver, enabling multiple wireless stacks, eg. BLE, ZigBee, Thread, Matter protocol and more to coexist and operate concurrently.

High-Power Amplifier

Using an integrated +20 dBm high-power amplifier with best-in-class transmit current consumption at 101 mA, the CC2652P7 2.4GHz RF module is used in long-range and low-power applications.

Rich Peripherals

RF-BM-2652P4 multi-protocol module offers 23 GPIOs in stamp half-hole package and supports rich peripherals such as UART, SPI, I2C, I2S, ADC, DAC, etc.


Flexible Antenna

A high-performance PCB onboard antenna is offered to you. Also, an IPEX connector and a half-hole interface are available according to your requirements.

Related Resources:

RF-BM-2652P4 CC2652P7 Module Features and Applications

RF-star's ZigBee CC2652P Module Solution for Natural Gas Alarm

BLE Modules with High Transmit Power

Wireless SoC:

  • 48 MHz ARM® Cortex®-M4F processor

  • TX power: Up to +20 dBm
  • Sensitivity:

    • -100 dBm @ 802.15.4 (2.4 GHz)

    • -105 dBm @ Bluetooth 5.0 (LE Coded PHY) (125 kbps)

  • Memory
    • 704 kB flash
    • 256 kB ROM
    • 88 KB SRAM

  • Data Rate

    • LE 1M PHY
    • LE 2M PHY
    • LE Coded PHY (long range)

Features:

  • Bluetooth 5.3 Low Energy

  • Thread

  • Zigbee 3.0

  • Matter

  • IEEE 802.15.4

  • IPv6-enabled smart objects (6LoWPAN)

  • Proprietary

  • Bluetooth Mesh

  • Direction Finding

Operating Range:

  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C

Rich Peripherals:

  • ADC
  • DAC
  • UART
  • SPI
  • I2C
  • I2S
  • RTC

Certificates:

  • FCC


TI SimpleLink CC2652P Series Multi-Protocol Modules
Part Number RF-BM-2652P4I RF-BM-2652P4 RF-BM-2652P3 RF-BM-2652P2I RF-BM-2652P2 RF-BM-2652P1
Photo CC2652P7 RF-BM-2652P4I Multi-protocol module CC2652P7 RF-BM-2652P4 Multi-protocol module CC2652P RF-BM-2652P3 Multi-protocol module CC2652P RF-BM-2652P2I Zigbee module CC2652P RF-BM-2652P2 Zigbee module CC2652P RF-BM-2652P1 Zigbee module
IC CC2652P7 CC2652P7 CC2652P CC2652P CC2652P CC2652P
Core 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M0+
Antenna IPEX/Half-hole interface PCB PCB IPEX/Half-hole interface PCB Half-hole interface
RAM 152 KB 152 KB 88 KB 88 KB 88 KB 88 KB
Flash 704 KB 704 KB 352 KB 352 KB 352 KB 352 KB
Protocols Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz)
Power Supply 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +20 dBm +20 dBm +20 dBm +20 dBm +20 dBm +20 dBm
Receiving Sensitivity -99 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ 125 kbps BLE Coded PHY -99 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY
GPIO 23 23 11 23 23 23
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 180 m @ 1M PHY (external PCB antenna) 240 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 150 m @ 1M PHY 220 m @ LE Coded PHY 600 m @ 802.15.4 150 m @ 1M PHY 220 m @ LE Coded PHY 600 m @ 802.15.4 180 m @ 1M PHY (external PCB antenna) 240 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 150 m @ 1M PHY 220 m @ LE Coded PHY 600 m @ 802.15.4 180 m @ 1M PHY (external PCB antenna) 240 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna)
Dimension (mm) 30.0 x 16.4 x 2.2 30.0 x 16.4 x 2.2 24.0 x 16.0 x 2.1 30.0 x 16.4 x 2.2 30.0 x 16.4 x 2.2 25.0 x 16.4 x 2.2
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA √ √ √ √ √ √
Bluetooth Mesh √ √ √ √ √ √
Long Range √ √ √ √ √ √
2Mbps PHY √ √ √ √ √ √
AoA/AoD √ √ √ √ √ √
UART Protocol N/A N/A N/A N/A N/A N/A
Application Smart home gateway, building automation Home automation, fire alarm control panel (FACP) Smoke and heat detector, asset tracking Factory automation and control, building security systems Security systems, gateway Smart grid, wireless sensor networks
related case studies
Smart Home
Smart Home
Smart BLE Lock
Smart BLE Lock
Smart EV Charger
Smart EV Charger
Smart BLE Bulb
Smart BLE Bulb
Related Products

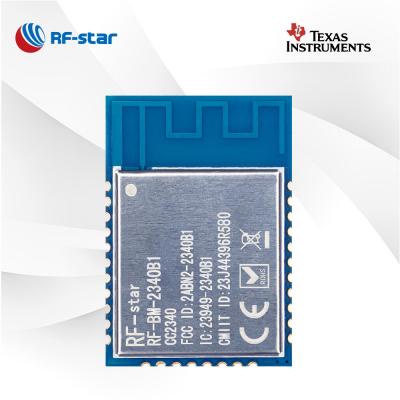

RF-BM-2340B1 BLE5.3 ZigBee Module Based on TI CC2340R5 RF-BM-2340B1 BLE5.3 Module
