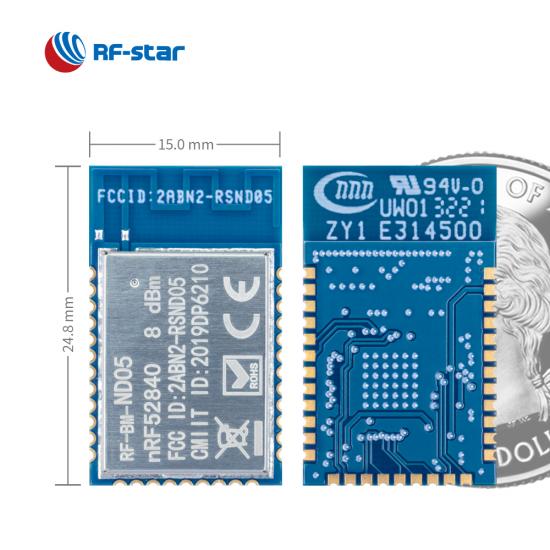

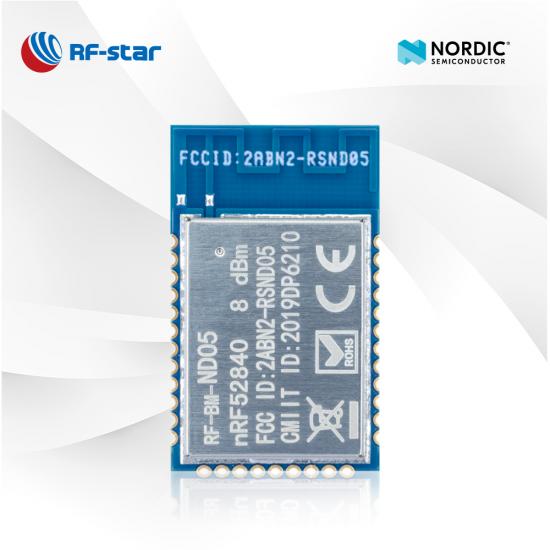

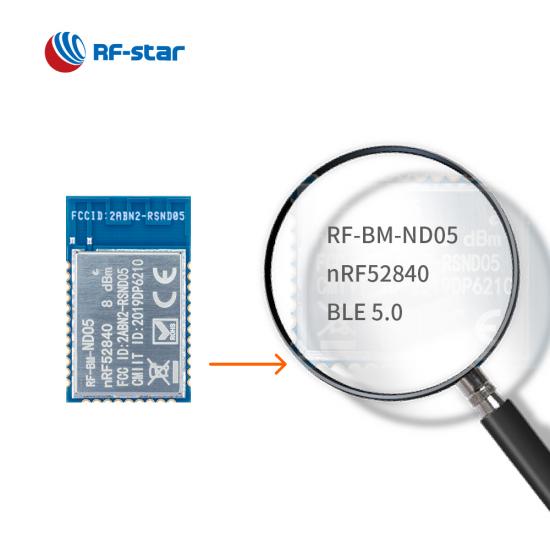

RF-BM-ND05 is an RF module based on Nordic multiprotocol SoC nRF52840 with a best-in-class 32-bit ARM® Cortex®-M4 processor. The nRF52840 module integrates a 32.768 kHz and a 32 MHz crystal, a power filter, an antenna matching, and a high-performance PCB antenna. It supports BLE stack v5.0, Bluetooth mesh, Thread, ZigBee, IEEE 802.15.4-2006 and 2.4 GHz proprietary. The multiprotocol module also has a range of analog and digital interfaces such as NFC-A, ADC, high-speed 32 MHz SPI, UART, SPI, I2C, PWM, I2S, PPI and PDM. It features high-performance digital interfaces, robust connection distance, and rigid reliability. 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design. These IoT applications such as Internet gateways, industrail controllers and sensors, smart plug and metering, home & building automation and medical devices are especially preferred to adopt this low power 2.4GHz RF module.
Multiple Protocols Supported
RF-BM-ND05 with a reliable PCB antenna supports Bluetooth mesh, Thread, ZigBee, NFC, Matter and other 2.4 GHz proprietary, widely adopted in home and building automation and wireless sensor networks, etc.
Advanced Peripherals

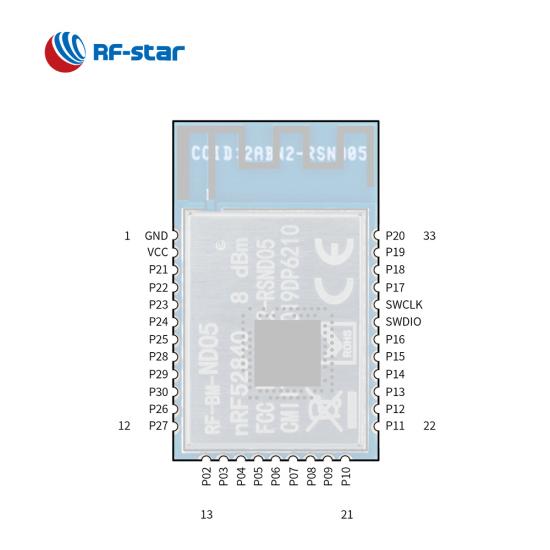

RF-BM-ND05 multi-protocol module offers 29 GPIOs in stamp half-hole package and supports rich peripherals such as UART, ADC, I2C, I2S. Even high-speed 32 MHz SPI, NFC-A, PPI are designed, too.
Powerful Processor
Based on Nordic nRF52840 chip, it is designed as a multi-protocol low-power RF module with a cutting-edge 64 MHz 32-bit ARM® Cortex®-M4 processor.
Serial Port (UART) Protocol
The nRF52840 wireless module is embedded with the BLE5.0 transparent transmission protocol (serial port protocol) to realize rich functions with AT commands.
