Multi-protocol Module CC2652P with PA and IPEX integrated RF-BM-2652P2I

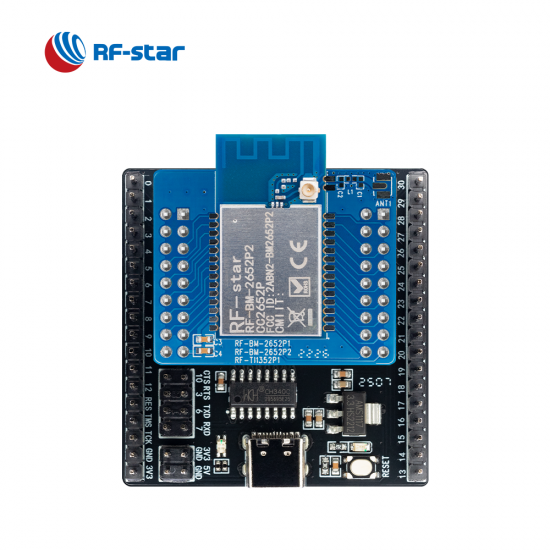

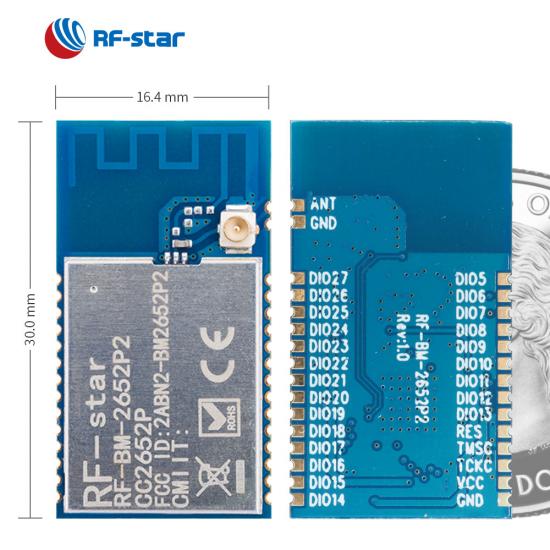

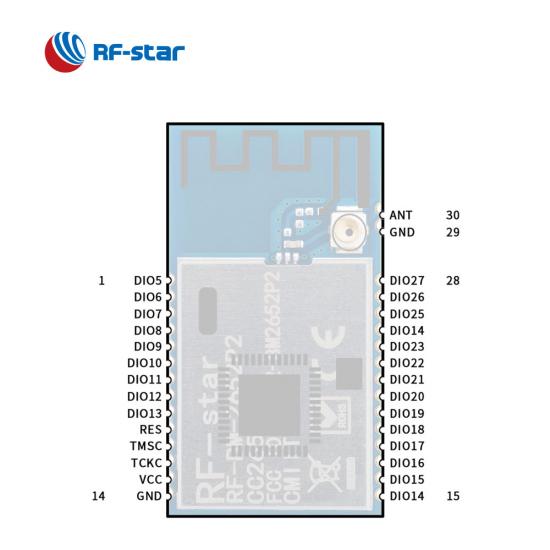

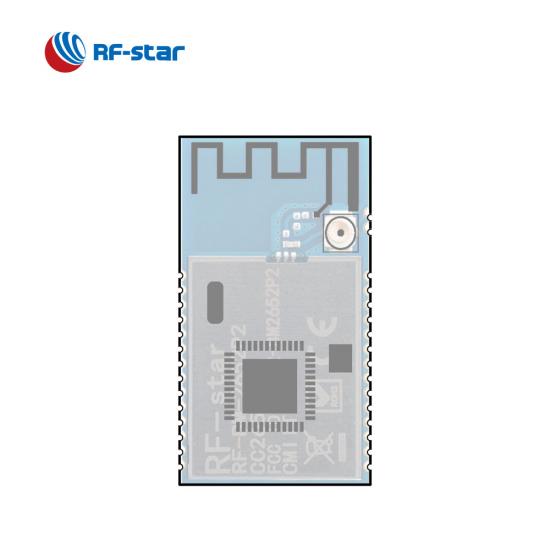

  • CC2652P Multi-protocol Module RF-BM-2652P2I

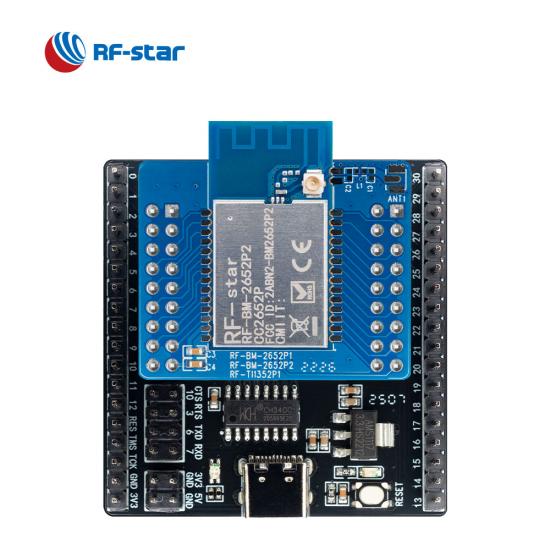

  • CC2652P Multi-protocol Module RF-BM-2652P2I

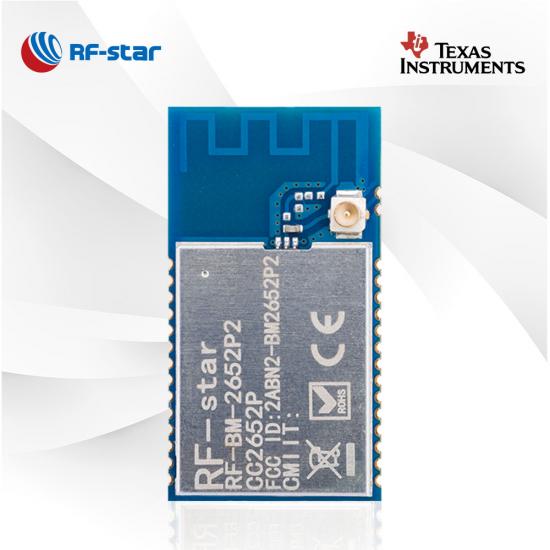

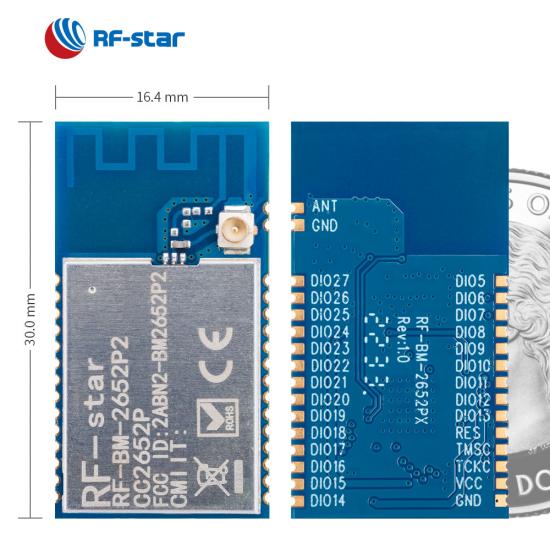

  • CC2652P Multi-protocol Module RF-BM-2652P2I

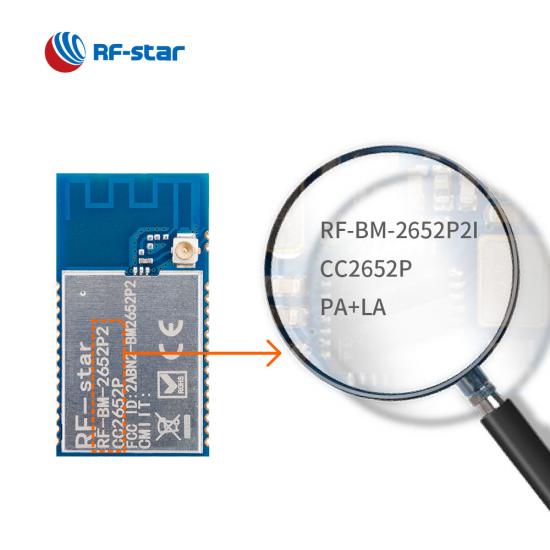

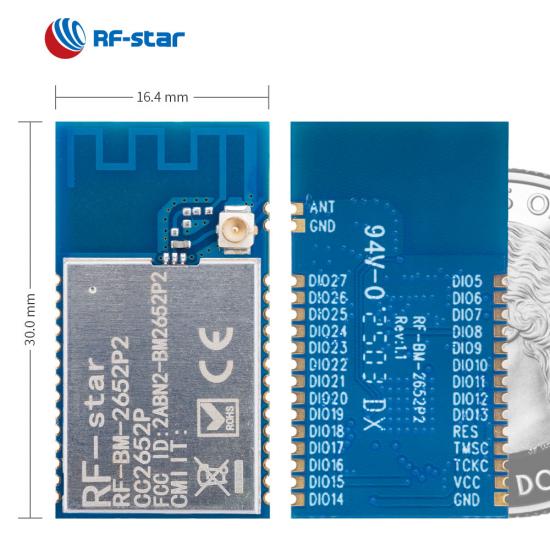

  • CC2652P Multi-protocol Module RF-BM-2652P2I

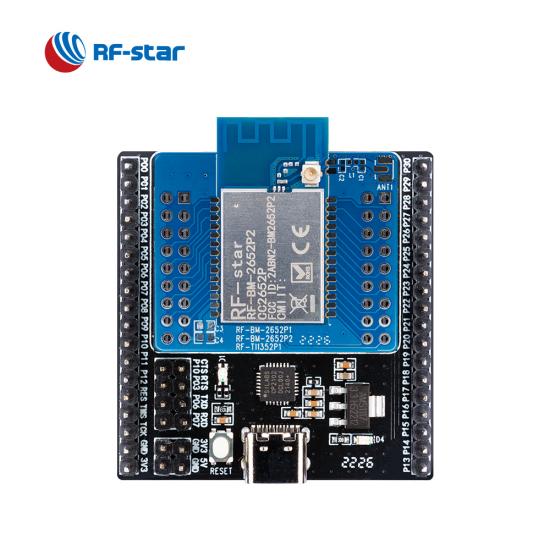

  • CC2652P Multi-protocol Module RF-BM-2652P2I

Multi-protocol Module CC2652P with PA and IPEX integrated RF-BM-2652P2I

RF-BM-2652P2I is RF-BM-2652P2 module with an IPEX connector version. This module aims to the long range requirement IoT markets. The module supports concurrent multiprotocol through a Dynamic Multiprotocol Manager (DMM) driver, such as Bluetooth 5.1 Low Energy, ZigBee, Thread IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), and proprietary, including the TI 15.4-Stack (2.4 GHz). RF-BM-2652P2I is widely applied in ZHA and Zigbee2MQTT.

  • P/N:

    RF-BM-2652P2I

  • SoC:

    CC2652P

  • Processor:

    48 MHz ARM® Cortex®-M4F

  • Protocols:

    Bluetooth 5.1 Low Energy, Thread, Zigbee 3.0, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), proprietary

  • Working Frequency:

    2402 MHz ~ 2480 MHz

  • Package (mm):

    30.0 × 16.4 × 2.3, half-hole, 1.27 pitch, 30-pin

  • Features:

    LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), Direction finding, Bluetooth mesh, Zigbee coordinator, Zigbee network processor, IPEX connector output

  • GPIO:

    23

  • Max. TX Power:

    +20 dBm

  • Transmission Range:

    500 m (@BLE), 800 m (@ZigBee)
Inquiry Now

RF-BM-2652P2I is based on TI CC2652P with a powerful processor of 48 MHz ARM® Cortex®-M4F. This multi-protocol module integrates a 48 MHz crystal, a 32.768 kHz crystal, 352 kB Flash, 256 kB ROM, an LC filter, and an IPEX connector. The IPEX connector and the maximum TX power of 20 dBm enable the module to work with the extremely long transmission range and ultra-low power consumption. It also can work in multiple protocols at the same time under Dynamic Multiprotocol Manager (DMM) driver support.


TI CC2652P Multiprotocol Module RF-BM-2652P2I

Dynamic Multiprotocol Manager

The CC2652P module RF-BM-2652P2I also integrates with a DMM driver, enabling multiple wireless stacks, eg. BLE, ZigBee, Thread protocol and more to coexist and operate concurrently.

Multiple Protocols Supported

RF-BM-2652P2I with an IPEX connector is a 2.4 GHz multi-protocol module, which are widely used in home and building automation, HAVC system, gateway, smart grid, wireless sensor networks, etc.

High-Power Amplifier

Using an integrated +20 dBm high-power amplifier with best-in-class transmit current consumption at 85 mA, the CC2652P 2.4GHz RF module can help your wireless devices reach a much longer range.


Rich Peripherals

RF-BM-2652P2I, like RF-BM-2652P2 module, offers 23 GPIOs in stamp half-hole package and supports rich peripherals such as UART, SPI, I2C, I2S, ADC, DAC, etc.

- Product Display -



Reference Resource:

What Are RF-star ZigBee CC2652P Modules

What Can RF-star ZigBee CC2652P Module Used for

ZigBee CC2652P Solution Help You Far Away The Natural Gas Explosion

Wireless SoC:


  • 48 MHz ARM® Cortex®-M4F processor
  • TX power: Up to +20 dBm
  • Sensitivity:
    • -100 dBm @ 802.15.4 (2.4 GHz)
    • -105 dBm @ Bluetooth 5.0 (LE Coded PHY) (125 kbps)
  • Memory
    • 352 kB flash
    • 256 kB ROM
    • 80 kB SRAM
  • Data Rate:
    • LE 1M PHY
    • LE 2M PHY
    • LE Coded PHY (long range)


Features:


  • Bluetooth 5.1 Low Energy
  • Thread
  • Zigbee 3.0
  • IEEE 802.15.4
  • IPv6-enabled smart objects (6LoWPAN)
  • Proprietary
  • Bluetooth Mesh
  • Direction Finding

Operating Range:


  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C



Rich Peripherals:


  • ADC
  • DAC
  • UART
  • SPI
  • I²C
  • I²S
  • RTC


Certificates:


  • FCC
  • CE


TI SimpleLink CC2652P Series Multi-Protocol Modules
Part Number RF-BM-2652P4I RF-BM-2652P4 RF-BM-2652P3 RF-BM-2652P2I RF-BM-2652P2 RF-BM-2652P1
Photo CC2652P7 RF-BM-2652P4I Multi-protocol module CC2652P7 RF-BM-2652P4 Multi-protocol module CC2652P RF-BM-2652P3 Multi-protocol module CC2652P RF-BM-2652P2I Zigbee module CC2652P RF-BM-2652P2 Zigbee module CC2652P RF-BM-2652P1 Zigbee module
IC CC2652P7 CC2652P7 CC2652P CC2652P CC2652P CC2652P
Core 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M0+
Antenna IPEX/Half-hole interface PCB PCB IPEX/Half-hole interface PCB Half-hole interface
RAM 152 KB 152 KB 88 KB 88 KB 88 KB 88 KB
Flash 704 KB 704 KB 352 KB 352 KB 352 KB 352 KB
Protocols Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz)
Power Supply 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +20 dBm +20 dBm +20 dBm +20 dBm +20 dBm +20 dBm
Receiving Sensitivity -99 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ 125 kbps BLE Coded PHY -99 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY
GPIO 23 23 11 23 23 23
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 180 m @ 1M PHY (external PCB antenna) 240 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 150 m @ 1M PHY 220 m @ LE Coded PHY 600 m @ 802.15.4 150 m @ 1M PHY 220 m @ LE Coded PHY 600 m @ 802.15.4 180 m @ 1M PHY (external PCB antenna) 240 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 150 m @ 1M PHY 220 m @ LE Coded PHY 600 m @ 802.15.4 180 m @ 1M PHY (external PCB antenna) 240 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna)
Dimension (mm) 30.0 x 16.4 x 2.2 30.0 x 16.4 x 2.2 24.0 x 16.0 x 2.1 30.0 x 16.4 x 2.2 30.0 x 16.4 x 2.2 25.0 x 16.4 x 2.2
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA √ √ √ √ √ √
Bluetooth Mesh √ √ √ √ √ √
Long Range √ √ √ √ √ √
2Mbps PHY √ √ √ √ √ √
AoA/AoD √ √ √ √ √ √
UART Protocol N/A N/A N/A N/A N/A N/A
Application Smart home gateway, building automation Home automation, fire alarm control panel (FACP) Smoke and heat detector, asset tracking Factory automation and control, building security systems Security systems, gateway Smart grid, wireless sensor networks
