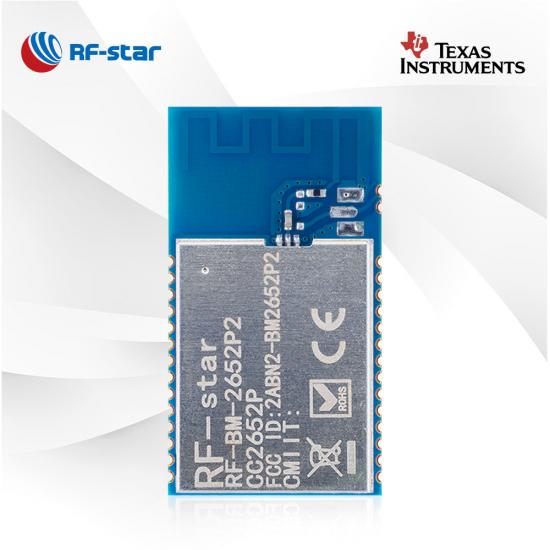

RF-BM-2652P2, a TI CC2652P-based multiprotocol module, is working under a powerful processor of 48 MHz ARM® Cortex®-M4F. It integrates a 48 MHz crystal, a 32.768 kHz crystal, 352 kB Flash, 256 kB ROM, an LC filter, and an RF output option of a high-performance PCB onboard antenna, an IPEX connector and a half-hole interface. The multiple output way and the maximum TX power of 20 dBm enable the module to work with the best-in-class transmission range and low power. And the Dynamic Multiprotocol Manager (DMM) driver also enables concurrent multiprotocol operation, coexistence and provisioning options, and achieves the creation of complex IoT systems using one IC. The CC2652P 2.4G RF moudle is favored by ZigBee home automation, ZigBee2MQTT coordinator, and long-range sensor applications.
Multiple Protocols Supported
RF-BM-2652P2 is a 2.4 GHz wireless module supporting Thread, Zigbee®, Bluetooth® 5.3 Low Energy, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), proprietary systems, including the TI 15.4-Stack (2.4 GHz).
High-Power Amplifier
Using an integrated +20 dBm high-power amplifier with best-in-class transmit current consumption at 85 mA, the CC2652P 2.4GHz RF module can help your wireless devices reach a much longer range.

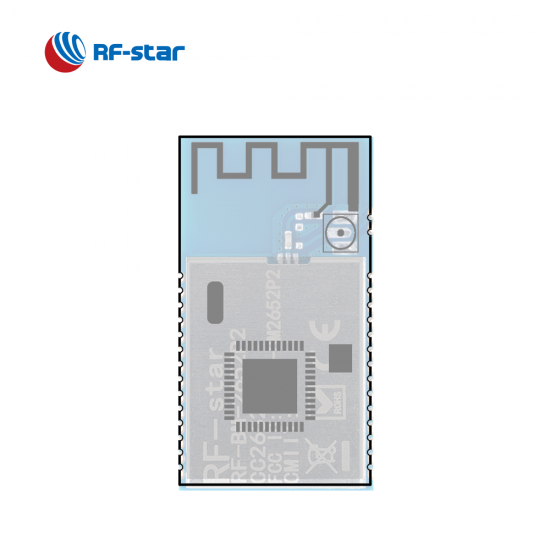

Three RF Output Options
Embedding the kind of multi-protocol module in your project, you can choose a high-performance PCB onboard antenna. Also, an IPEX connector and a half-hole interface are available.
Dynamic Multiprotocol Manager
The CC2652P module RF-BM-2652P2 with the DMM driver allows multiple wireless stacks, eg. BLE, ZigBee, Thread protocol and more to coexist and operate concurrently.

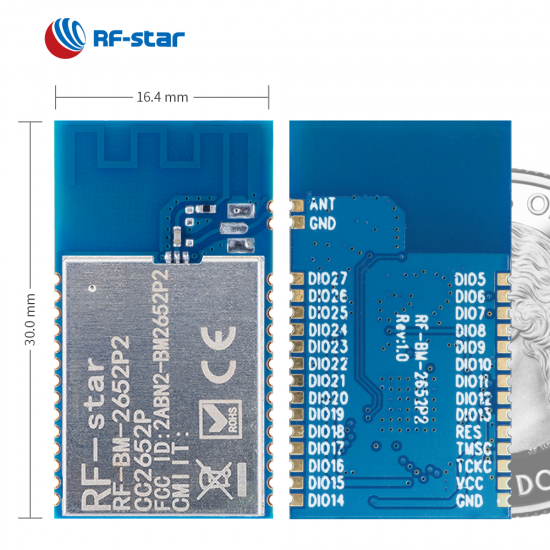

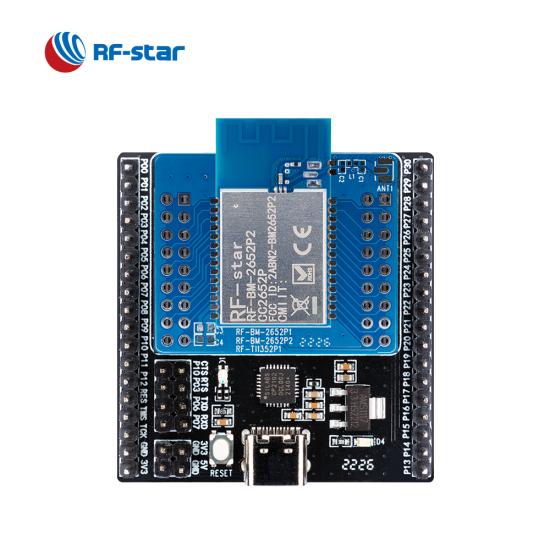

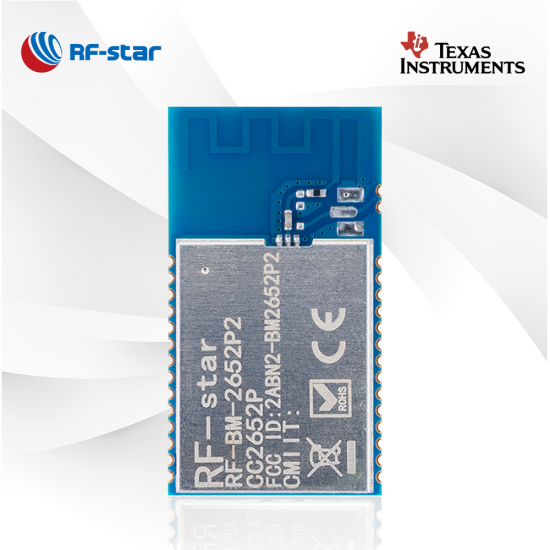

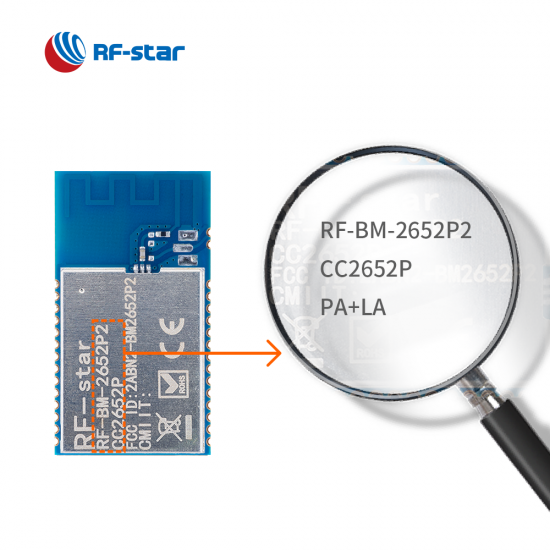

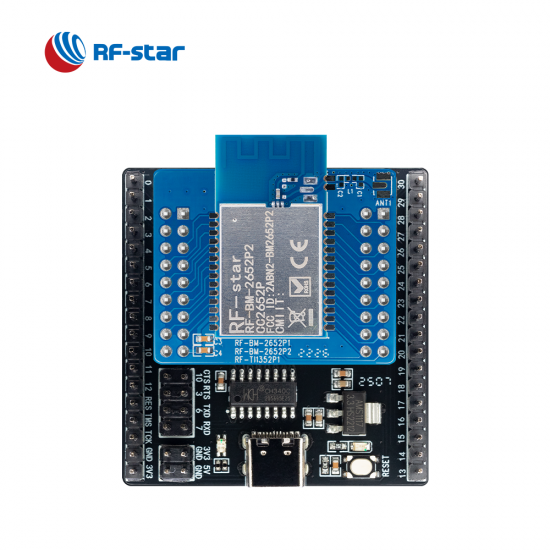

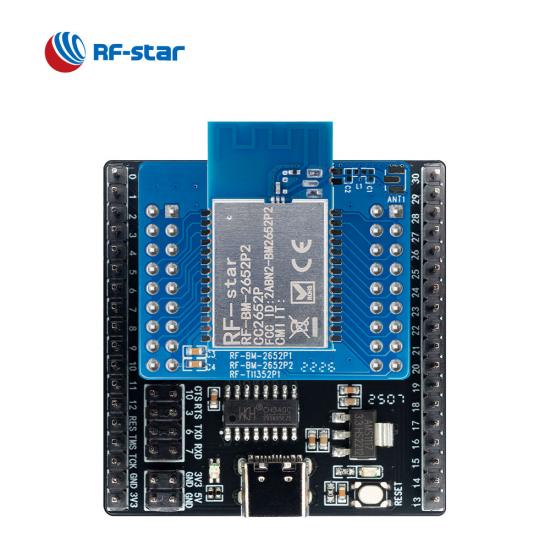

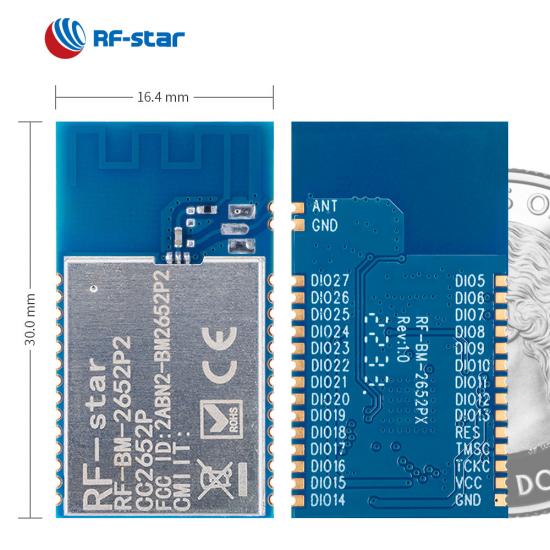

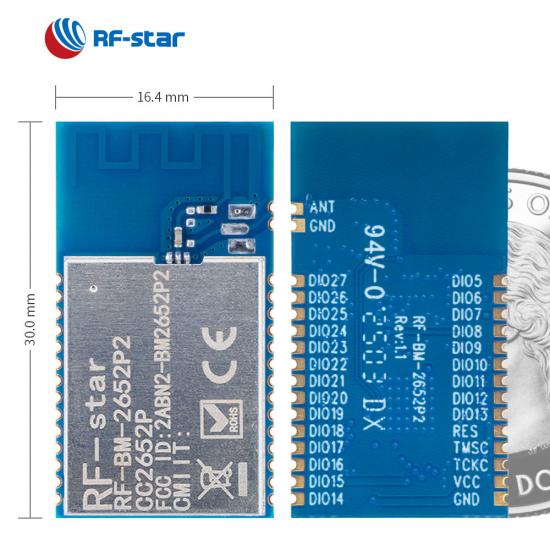

- Product Display -
