RF-BM-ND10 nRF52833 BLE5.3 ZigBee Thread Multi-Protocol Module

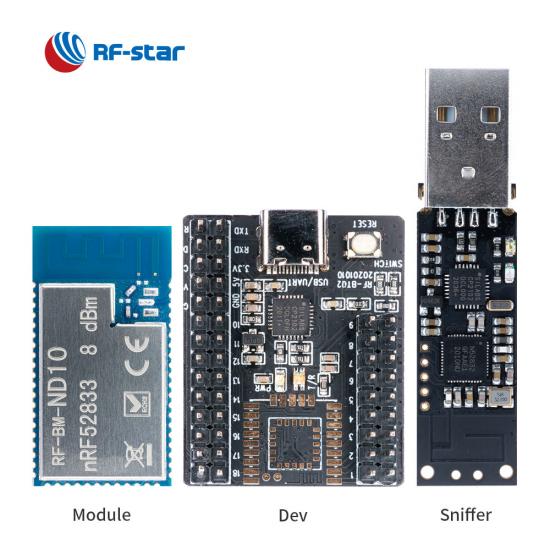

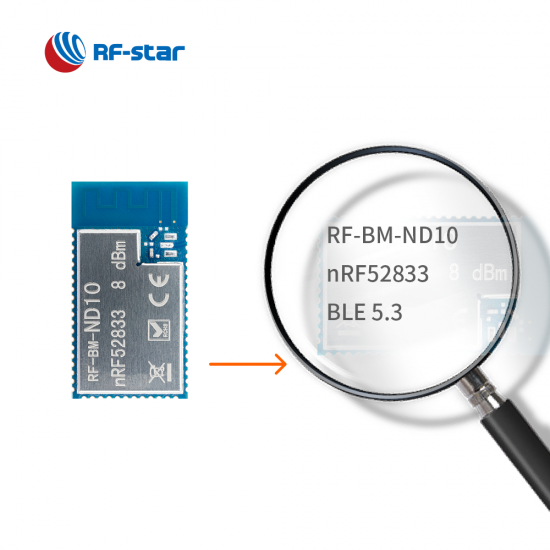

  • nRF52833 Multi-Protocol Module RF-BM-ND10

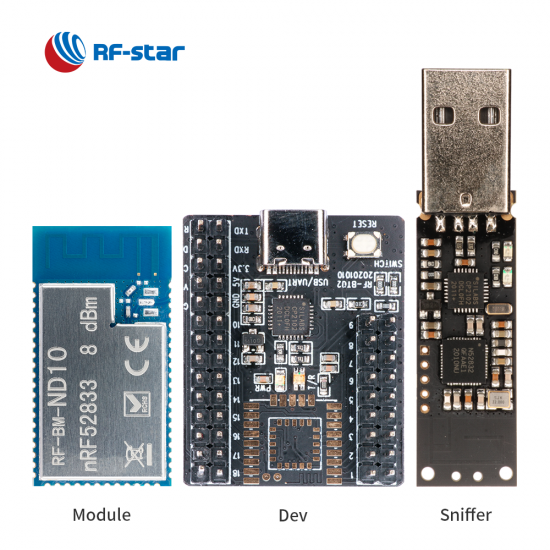

  • nRF52833 Multi-Protocol Module RF-BM-ND10

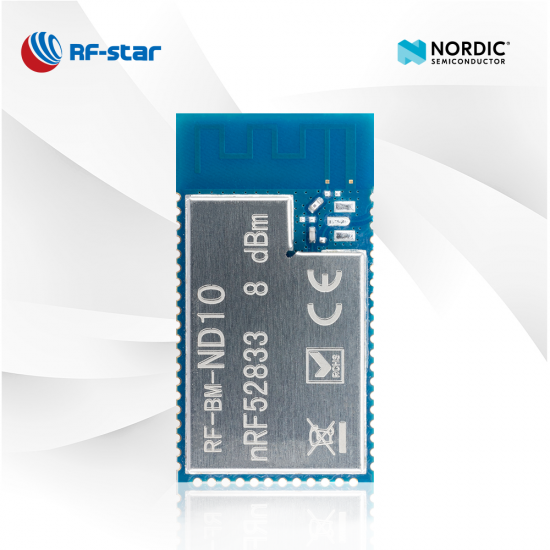

  • nRF52833 Multi-Protocol Module RF-BM-ND10

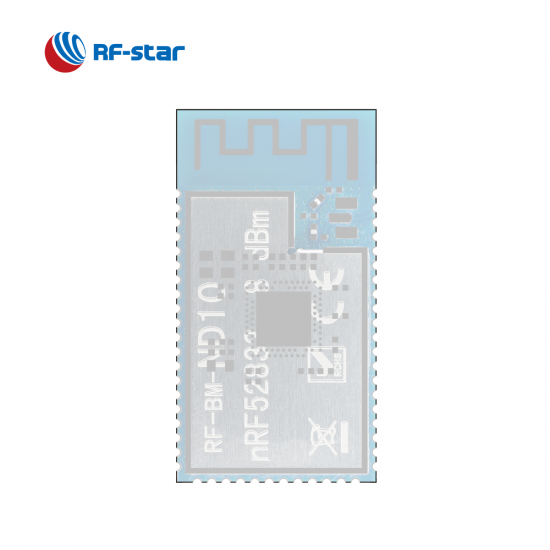

  • nRF52833 Multi-Protocol Module RF-BM-ND10

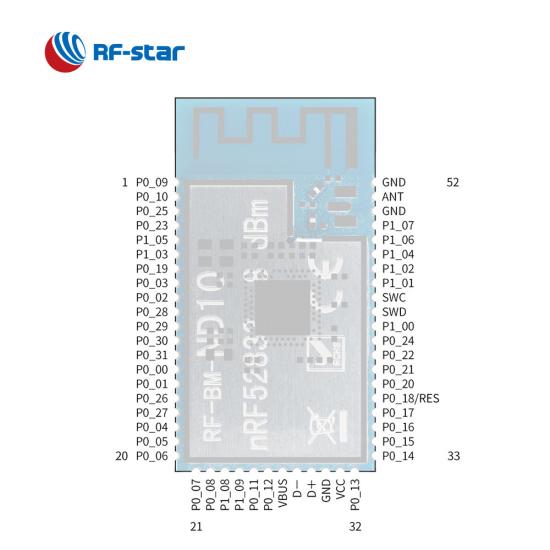

  • nRF52833 Multi-Protocol Module RF-BM-ND10

RF-BM-ND10 nRF52833 BLE5.3 ZigBee Thread Multi-Protocol Module

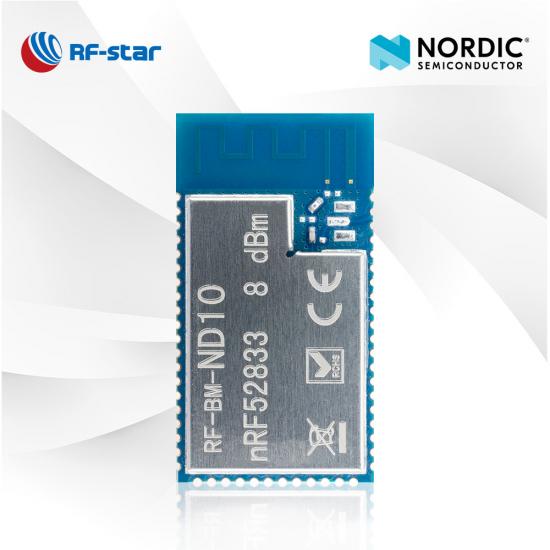

RF-BM-ND10 is a multi-protocol module based on Nordic nRF52833 SoC developed for the high-performance, high-reliability requirements of IoT products and gateways. This nRF52833 module also supports Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary. The Direction Finding AoA/AoD feature makes the 2.4 GHz module popular in location applications.

  • P/N:

    RF-BM-ND10

  • SoC:

    nRF52833

  • Processor:

    32-bit ARM® Cortex®-M4F 64 MHz

  • Protocols:

    BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC

  • Working Frequency:

    2402 MHz ~ 2480 MHz

  • Package (mm):

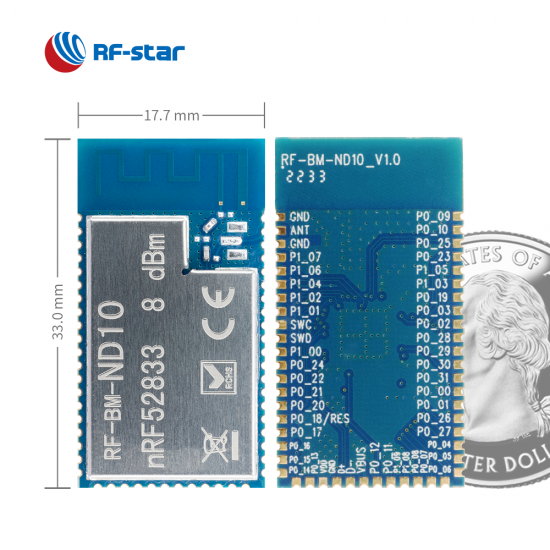

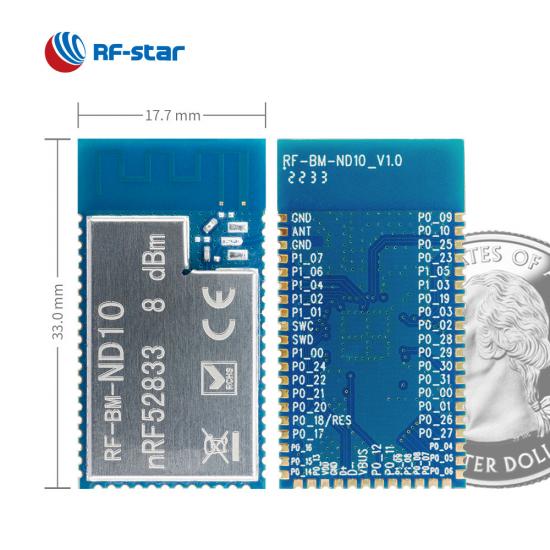

    233.0 x 17.7 x 2.1, 1.27-mm pitch half-hole, 52-pin

  • Features:

    Bluetooth Direction Finding AoA/AoD, Bluetooth long range, NFC-A, USB 2.0, High-speed SPI

  • GPIO:

    42

  • Max. TX Power:

    +8 dBm

  • Transmission Range:

    500 m
Inquiry Now

RF-BM-ND10 is a multi-protocol module based on Nordic SoC nRF52833 with 64 MHz ARM® Cortex®-M4F processor. It integrates the crystals, the matching and antenna options (PCB onboard antenna, IPEX connector or half-hole antenna interface). It supports Bluetooth® 5.3 Low Energy, Bluetooth mesh, Thread, Zigbee, ANT, and Proprietary. A wide range of analog and digital interfaces such as NFC-A, ADC, full-speed 12 Mbps USB 2.0, High-speed 32 MHz SPI, SPI, UART, PWM, I2C, I2S and PDM makes this module an ideal and high-performance device for the advanced commercial, medical and industrial applications.


nRF52830 BLE5.0 RF-BM-ND10

External Antenna

An high-performance PCB antenna matching and an option for RF output mode (IPEX connector and a half-hole RF interface) make you flexible to connect your device.

Good Compatibility

Its 2.4 GHz RF transceiver is compatible with Bluetooth 5.3 Low Energy, Bluetooth Mesh, Direction Finding AoA and AoD, Thread, ZigBee and NFC.

Rich Digital Interfaces

With up to 42 GPIOs, the RF module also features a wide range of digital interfaces such as UART, ADC, I2C, I2S are well-integrated, even high-speed 32 MHz SPI, NFC-A, PPI, USB 2.0 controller included.


Direction Finding AoA/AoD

Supporting Bluetooth direction finding AoA/AoD, the nRF52833 multi-protocol module are the ideal module for asset tracking and monitor devices.

Related Resources:

RF-star Launched BLE Module RF-BM-ND10 over Nordic nRF52833

Comparison between Long Range nRF52833 and nRF52832

Wireless SoC:

  • ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz
  • TX power: -20 dBm to +4 dBm
  • Sensitivity in BLE mode:

    • -96 dBm (@ BLE 1 Mbps)

    • 103 dBm (@BLE 125 kbps long range mode)

    • 99 dBm (@802.15.4 250 kbps)

    • -93 dBm (@2.4 GHz 1 Mbps)

    • 89 dBm (@2.4 GHz 2 Mbps)

  • Memory
    • 512 KB flash
    • 128 KB RAM

RF Features:

  • Bluetooth® 5.3 Low Energy
    • Data rate: 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps
    • Bluetooth Direction Finding
    • Thread: 250 kbps
    • 2.4 GHz Proprietary: 2 Mbps, 1 Mbps
  • IEEE 802.15.4-2006
    • Data rate: 250 kbps
    • Thread
    • ZigBee
  • 2.4 GHz Proprietary

    • Data rate: 2 Mbps, 1 Mbps

  •   USB 2.0
  • NFC
  • ANT

Current Consumption:

  • 15.5 mA peak current in TX (+8 dBm)

  • 6.0 mA peak current in TX (0 dBm)

  • 6.0 mA peak current in RX at 1 Mbps

Operating Range:

  • Supply voltage range 1.7 V ~ 5.5 V
  • Working temperature range: -40 °C ~ +85 °C

Rich Peripherals:

  • 12 Mbps full-speed USB 2.0
  •  High speed 32 MHz SPI
  • Type-2 NFC-A
  • 2xUART(CTS/RTS)
  • I²S
  • PDM
  • 4xPWM
  • QDEC
  • 12-bit, 200 ksps ADC
  • 64 level low-power comparator,
  • General-purpose comparator
  • 5 x 32 bit timer/counter
  • 3 x 24 bit real-time counter
  • 42 GPIO
  • Temp sensor
  • WDT
  • RNG
NORDIC nRF52 Series Multi-Protocols Modules
Part Number RF-BM-ND10 RF-BM-ND07 RF-BM-ND06 RF-BM-ND05I RF-BM-ND05 RF-BM-ND08A RF-BM-ND04A
Photo nRF52833 RF-BM-ND10 module nRF52833 RF-BM-ND07 module nRF52840 RF-BM-ND06 module nRF52840 RF-BM-ND05I module nRF52840 RF-BM-ND05 module nRF52811 RF-BM-ND08A module nRF52811 RF-BM-ND04A module
IC nRF52833 nRF52833 nRF52840 nRF52840 nRF52840 nRF52811 nRF52811
Core 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4
Antenna PCB/IPEX/Half-hole interface Chip/IPEX/Pad PCB IPEX/Half-hole interface PCB PCB PCB
RAM 128 KB 128 KB 256 KB 256 KB 256 KB 24 KB 24 KB
Flash 512 KB 512 KB 1 MB 1 MB 1 MB 192 KB 192 KB
Protocols BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC, Matter BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC, Matter BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC, Matter BLE5.3, Proprietary, Thread, ANT BLE5.3, Proprietary, Thread, ANT
Power Supply 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +8 dBm +8 dBm +8 dBm +8 dBm +8 dBm +4 dBm +4 dBm
Receiving Sensitivity -103 dBm @ 125 kbps LE Coded PHY -96 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -96 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -95 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -95 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -95 dBm @1 Mbit/s BLE -104 dBm @ 125 kbps LE Coded PHY -97 dBm @1 Mbit/s BLE -104 dBm @ 125 kbps LE Coded PHY -97 dBm @1 Mbit/s BLE
GPIO 42 42 48 29 29 16 29
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +105 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range PCB antenna 110 m @ 1M PHY 150 m @ LE CODE Chip antenna 80 m @ 1M PHY 100 m @ LE CODE 110 m @ 1M PHY 150 m @ LE CODE External PCB antenna 130 m @ 1M PHY 180 m @ LE CODE 110 m @ 1M PHY 150 m @ LE CODE 80 m @ 1M PHY 110 m @ LE CODE 90 m @ 1M PHY 120 m @ LE CODE
Dimension (mm) 33.0 x 17.7 x 2.1 17.0 x 12.2 x 2.2 24.0 x 20.5 x 2.2 24.8 x 15.0 x 2.3 24.8 x 15.0 x 2.3 15.2 x 11.2 x 1.7 24.8 x 15.0 x 2.3
Package 1.27-mm pitch half-hole 0.5-mm pitch DFN 0.8-mm pitch DFN 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA √ √ √ √ √ √ √
Bluetooth Mesh √ √ √ √ √ × ×
Long Range √ √ √ √ √ √ √
2Mbps PHY √ √ √ √ √ √ √
AoA/AoD √ √ × × × √ √
UART Protocol N/A N/A N/A N/A N/A Slave Slave
Functions All IOs, Support AoA/AoD All IOs, Support AoA/AoD, Ultra-small dimension All IOs, Compact size Feasible for external antenna, BLE gateway Rich resources, Smart home gateway High compatibility, Support AoA/AoD Support AoA/AoD, High effective
