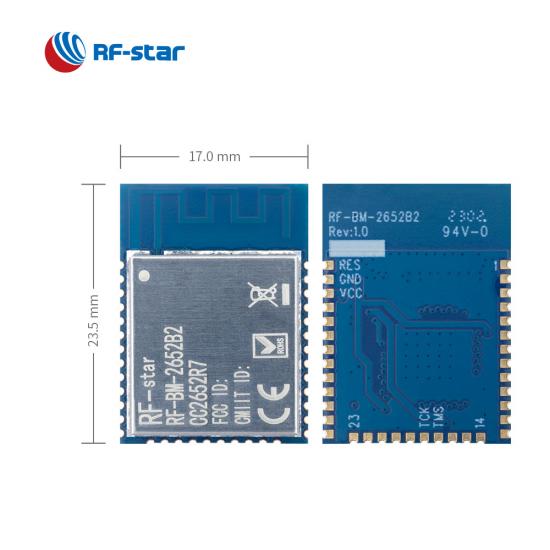

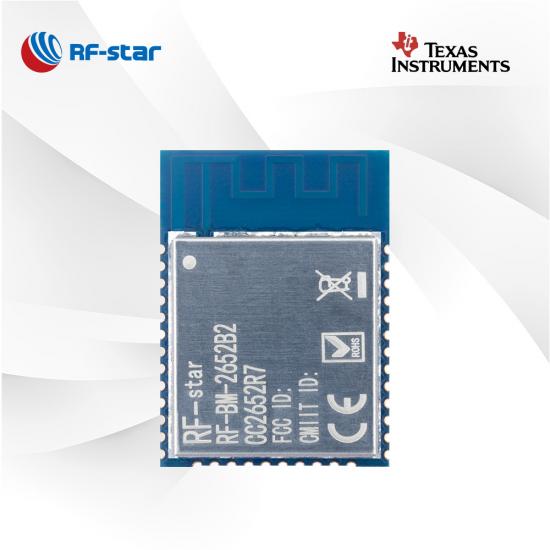

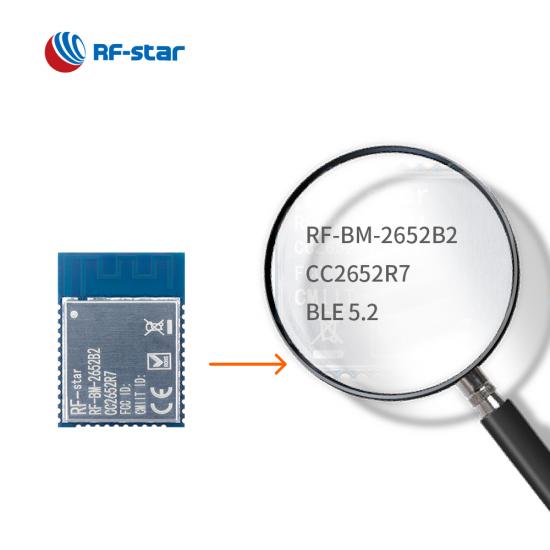

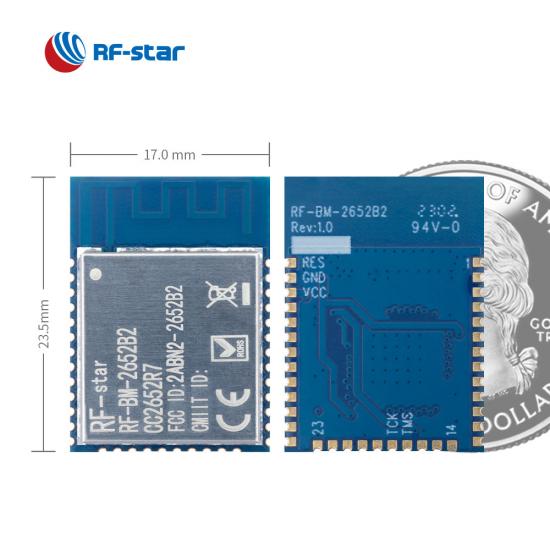

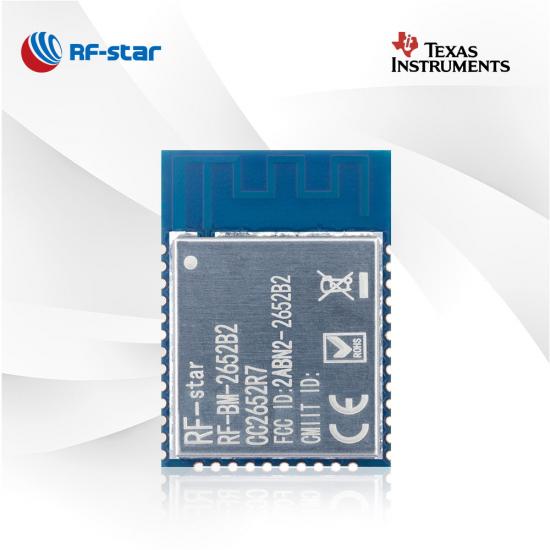

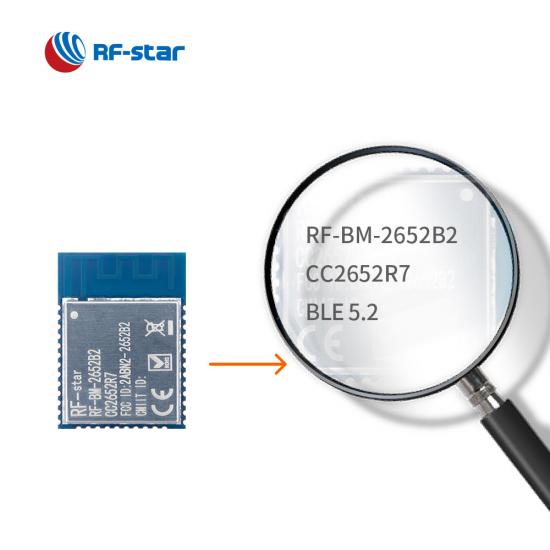

RF-BM-2652B2 RF module is developed by RF-star based on TI CC2652R7. The multi-protocol module is integrated with a powerful processor of 48 MHz ARM® Cortex®-M4F, which achieves complex arithmetic, a 48 MHz crystal, a 32.768 kHz crystal, 704 KB Flash, 256 KB ROM, an LC filter, and an onboard PCB antenna. The rich resources make the wireless module popular in the gateway, smart home, other civil industries and Matter applications. And the module can enable concurrent multiprotocol operation, such as BLE with ZigBee at the same time, which achieves the complex system under two different protocols.
Dynamic Multiprotocol Manager
It is a multiprotocol 2.4 GHz RF transceiver that is compatible with Thread, Zigbee®, Matter, Bluetooth® 5.3 Low Energy,IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), TI 15.4-Stack (2.4 GHz), and concurrent multiprotocol through a DMM driver.
Rich Peripherals
The CC2652R7 module RF-BM-2652B2 offer an in-system programmable flash of 704 KB, 256 KB ROM, 8 KB of Cache SRAM, 144 KB of ultra-low leakage SRAM.
Robust Onboard PCB Antenna
The Matter Thread BLE ZigBee module with inverted-F PCB antenna on board can offer a better RF performance and reduce your project’s costs.
Wide Peripherals

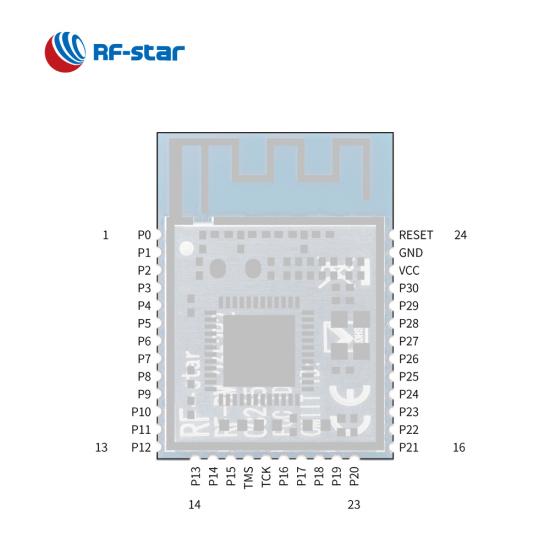

RF-BM-2652B2 multi-protocol module offers 31 GPIOs in stamp half-hole package and supports rich peripherals such as UART, SPI, I2C, I2S, ADC, DAC, etc.
