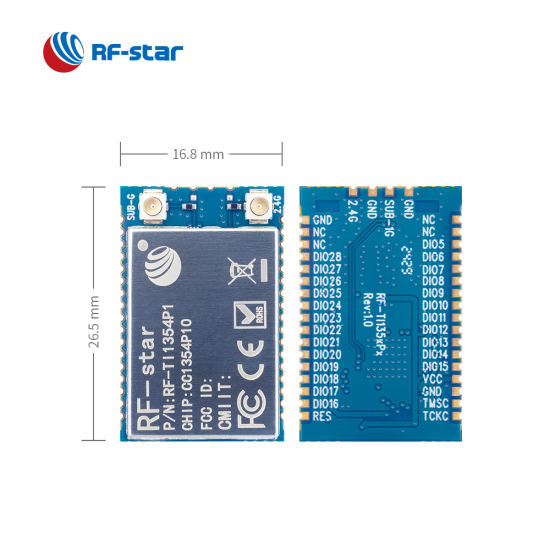

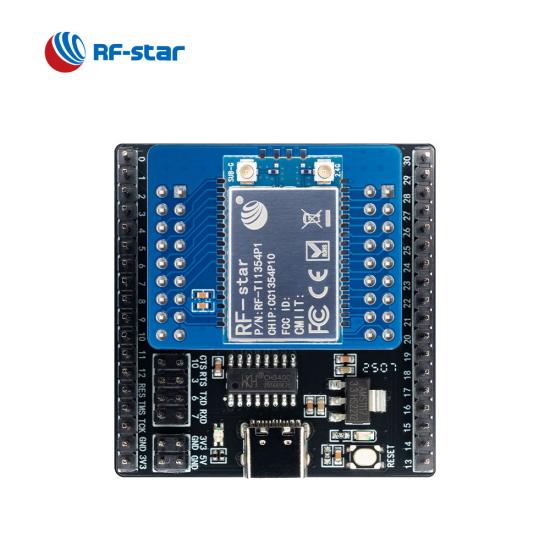

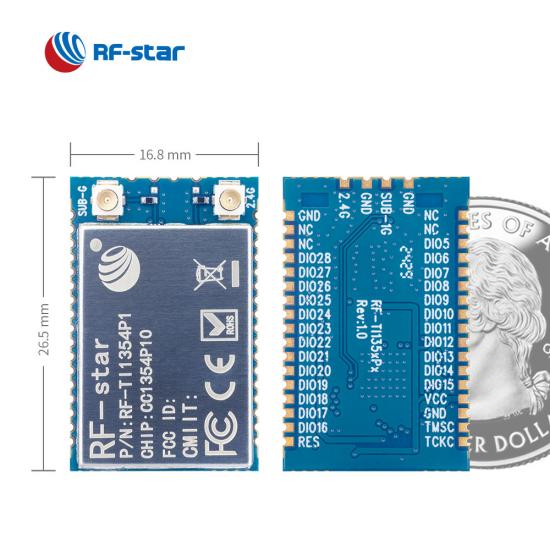

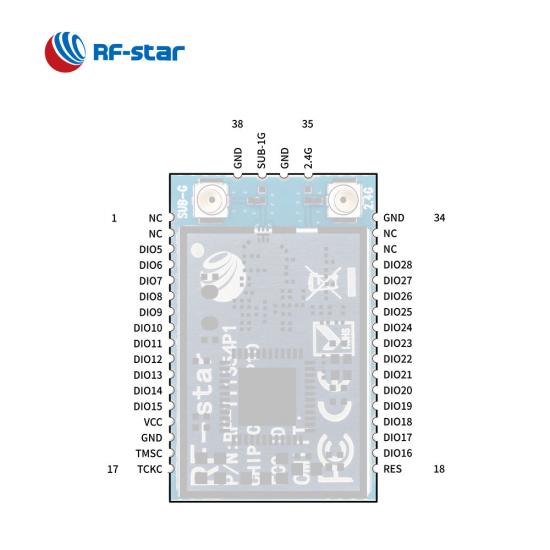

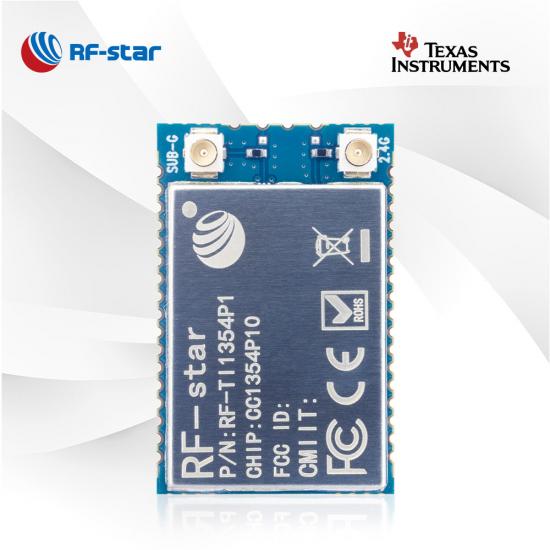

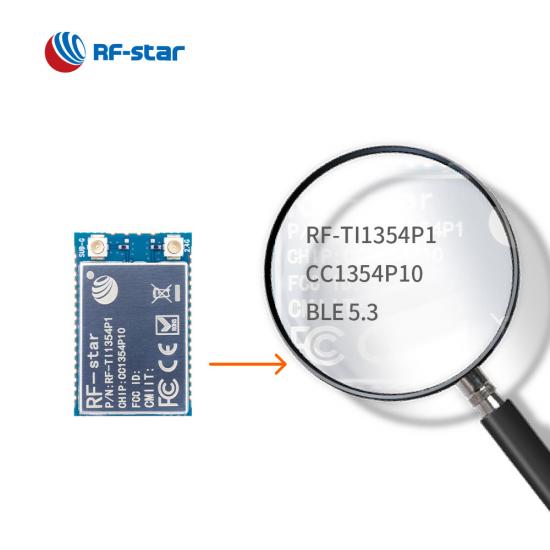

RF-TI1354P1 is an RF module based on TI SoC CC1354P10 with an integrated power amplifier. It integrates a 48 MHz and a 32.768 kHz crystal, a 256 kB SROM, a 1024 kB Flash, and the IPEX connectors and half-hole RF output pins of different radio frequency to guarantee the external antenna connection. Its ARM® Cortex®-M33 core application processor optimized for long-range and low-power. It features small size, robust connection distance, and rigid reliability. The multi-band module supporting multiprotocol for both Sub-1 GHz and 2.4 GHz through a DMM driver for Thread, Zigbee®, Matter, Bluetooth® 5.3 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY®, proprietary systems, including the TI 15.4-Stack (Sub-1 GHz and 2.4 GHz). 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design.
Rich Memory
The CC1354P10 wireless module integrates a 256 KB ROM, a 1024 KB Flash making it possible in many complex applications, especially in Matter networking.
Flexible RF Output Modes
Two IPEX connectors individually for sub 1G and 2.4G radio frequency, and half-hole RF output pins may satisfy for your any requirement.
Dynamic Multiprotocol Manager
The multi-protocol RF module supports Zigbee®, Thread, Matter, Bluetooth® 5.3 Low Energy, IEEE 802.15.4g, 6LoWPAN, MIOTY®, proprietary systems and concurrent multiprotocol through a DMM driver.
Dual-band Radio Frequency
Dual-band radio frequency for 868 MHz, 915 MHz and 2.4 GHz enables the CC1354P10 multi-protocol module popular in smart meters,building security systems, portable electronics and long-range sensor applications.
