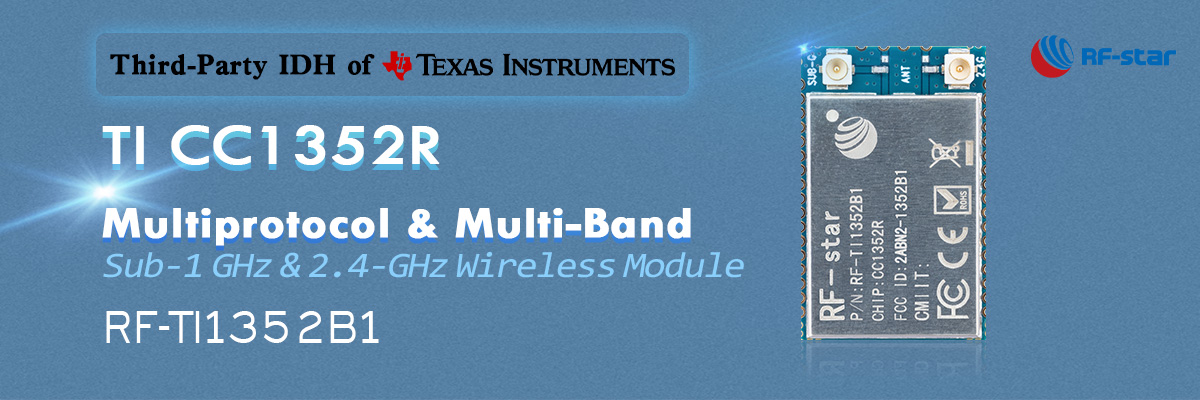

CC1352R Multiprotocol Sub-1 GHz and 2.4-GHz Wireless Module RF-TI1352B1

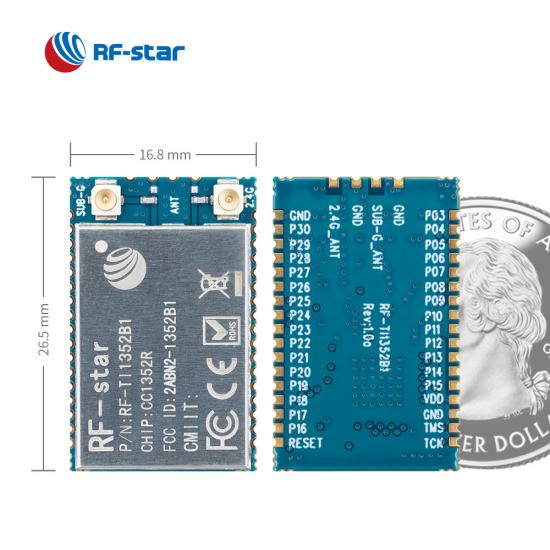

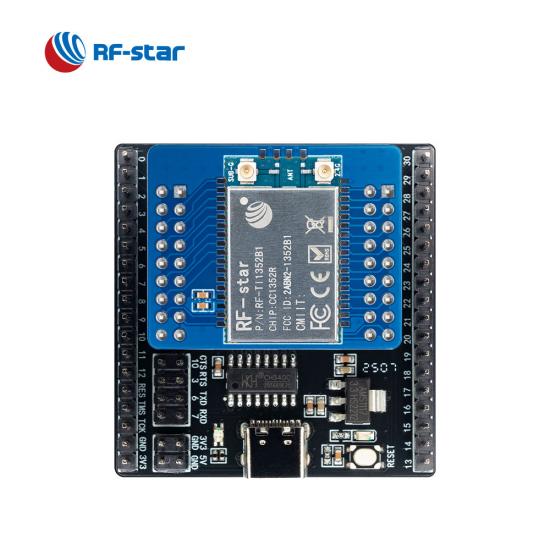

  • CC1352R Multiprotocol Wireless Module RF-TI1352B1 with Sub-1 GHz and 2.4-GHz bands

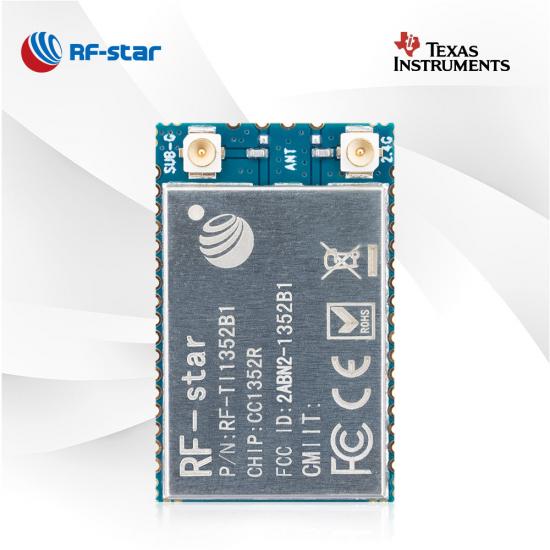

  • CC1352R Multiprotocol Wireless Module RF-TI1352B1 with Sub-1 GHz and 2.4-GHz bands

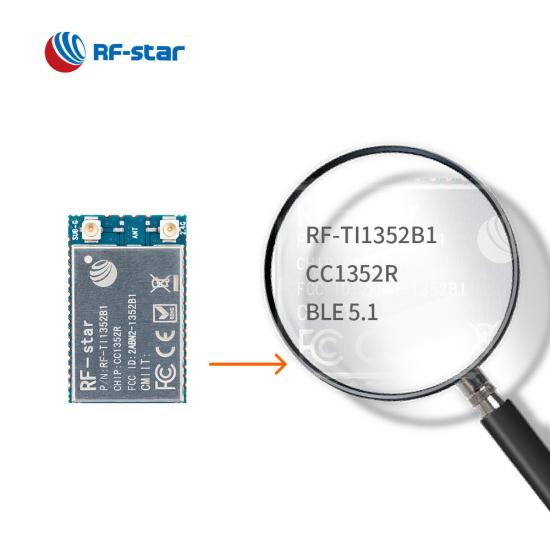

  • CC1352R Multiprotocol Wireless Module RF-TI1352B1 with Sub-1 GHz and 2.4-GHz bands

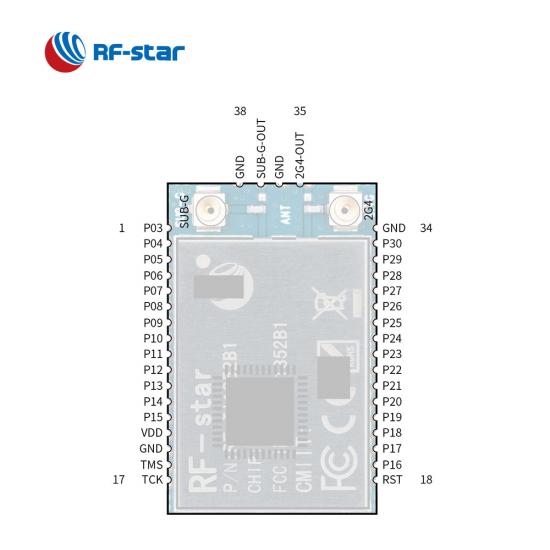

  • CC1352R Multiprotocol Wireless Module RF-TI1352B1 with Sub-1 GHz and 2.4-GHz bands

CC1352R Multiprotocol Sub-1 GHz and 2.4-GHz Wireless Module RF-TI1352B1

RF-TI1352B1, based on CC1352R, is a multiprotocol and multi-band Sub-1 GHz and 2.4-GHz wireless module aimed at the low-power wireless communication and advanced sensing IoT markets. RF-TI1352B1 with two bands antenna output will be a nice choice to simplify your design work.

  • P/N:

    RF-TI1352B1

  • SoC:

    CC1352R

  • Processor:

    48 MHz ARM® Cortex®-M4F

  • Protocols:

    IEEE 802.15.4, Wireless M-Bus (T, S, C, N mode), 6LoWPAN, Wi-SUN NWP, Proprietary 2.4 GHz, Amazon Sidewalk, Bluetooth 5.1 Low Energy, Zigbee, Thread, MIOTY

  • Working Frequency:

    800 MHz ~ 928 MHz, 2402 MHz ~ 2480 MHz

  • Package (mm):

    26.5 × 16.8 × 2.2, half-hole, 1.27 pitch, 38-pin

  • Features:

    Bluetooth mesh, Border router, Direction finding, LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), NCP, OAD, Sleepy end device, Zigbee coordinator, Two IPEX connectors for 2.4 GHz and Sub-1 GHz respectively

  • GPIO:

    28

  • Max. TX Power:

    +5 dBm

  • Transmission Range:

    150 m (@BLE), 350 m (@ZigBee), 500 m (@Sub-1 GHz)
Inquiry Now

RF-TI1352B1 module is developed based on TI CC1352R with a powerful processor of 48 MHz ARM® Cortex®-M4F. It is a multiprotocol and multi-band module supporting Thread, Zigbee®, Bluetooth® 5.1 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY®, proprietary systems, including the TI 15.4-Stack (Sub-1 GHz and 2.4 GHz). The Sub 1GHz and 2.4GHz module consists of a 48 MHz crystal, a 32.768 kHz crystal, 352 kB Flash, 256 kB ROM, an LC filter, and two IPEX connectors for 2.4 GHz and Sub-1 GHz respectively. The IPEX connector and the higher TX power enable the module to have a bigger possibility to reach a longer transmission range and achieve a better application experience. This powerful module with DMM driver is suitable for a large range of applications such as electronic point of sale (EPOS), factory automation and control, fire safety system, industriual security system, etc.


TI CC1352R Multiprotocol & Multi-Band Sub-1 GHz & 2.4-GHz Wireless Module RF-TI1352B1

Two IPEX Connectors

Two IPEX connectors embedded in the multi-band module enables it to flexibly and extensively apply in both Sub 1GHz and 2.4GHz radio systems.

Long Transmission Range

Due to Sub 1GHz and 2.4 GHz frequency band, the wireless RF module can transmit signal to farther devices and is less susceptible to interference.

Dynamic Multiprotocol Manager

It is a multi-protocol RF module that is compatible with Thread, Zigbee®, Bluetooth® 5.1 Low Energy, Wi-SUN, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY®, proprietary systems and concurrent multiprotocol through a DMM driver.


Serial Port Protocol

CC1352R wireless module supports Sub 1GHz and 2.4 GHz multi-protocol and can be preprogrammed with a serial interface communication protocol for Thread, ZigBee, BLE5.3 and TI 15.4-Stack (Sub 1GHz).
