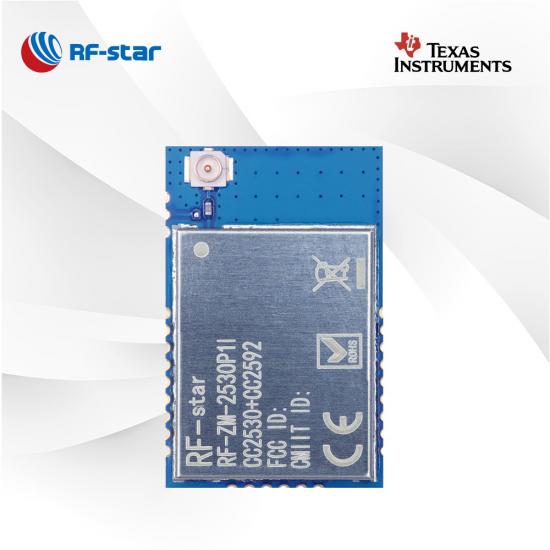

RF-ZM-2530P1I CC2530 CC2592 ZigBee Module with Power Amplifier and IPEX Connector

  • CC2530 CC2592 ZigBee Module
  • CC2530 CC2592 ZigBee Module
  • CC2530 CC2592 ZigBee Module
  • CC2530 CC2592 ZigBee Module

RF-ZM-2530P1I CC2530 CC2592 ZigBee Module with Power Amplifier and IPEX Connector

RF-ZM-2530P1I is a ZigBee module designed on CC2530 and CC2592. The module is with a PA and the IPEX connector, which enable it a wider transmission coverage and more feasible for the external antenna.

  • P/N:

    RF-ZM-2530P1I

  • SoC:

    CC2530 CC2592

  • Processor:

    8051 Microcontroller Core with Code Prefetch

  • Protocols:

    ZigBee

  • Working Frequency:

    2394 MHz ~ 2507 MHz

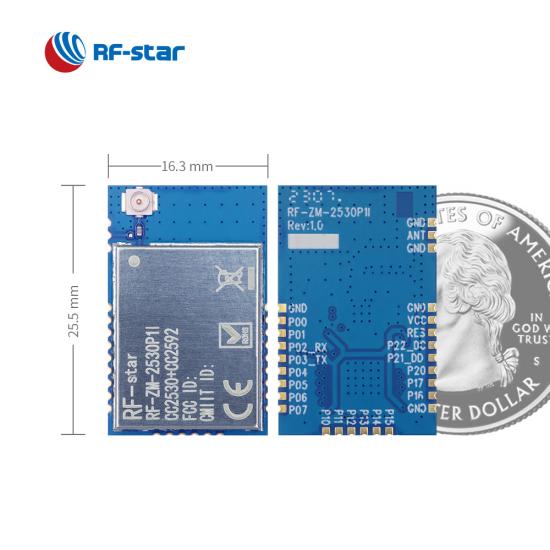

  • Package (mm):

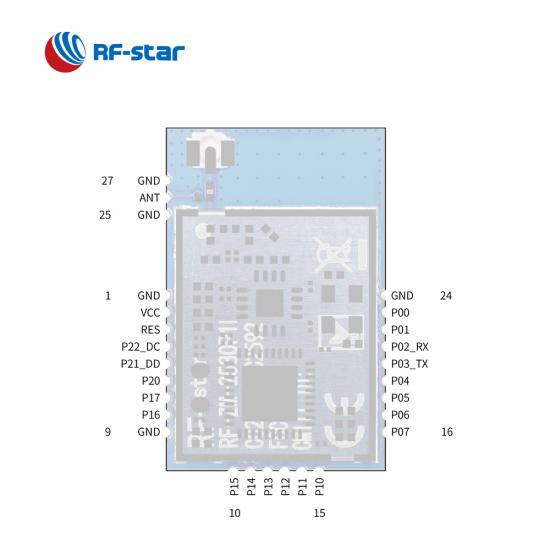

    25.5 × 16.3 × 2.2, half-hole, 1.27 pitch, 24-pin

  • Features:

    IEEE 802.15.4, Radio Frequency for Consumer Electronics (RF4CE) , IPEX connector for external antenna

  • GPIO:

    16

  • Max. TX Power:

    +21 dBm

  • Transmission Range:

    1000 m
Inquiry Now

RF-ZM-2530P1I is a ZigBee 3.0 module designed based on CC2530 and CC2592 (a power amplifier). The module is with the max. TX power up to 21 dBm and integrated an IPEX connector, which makes it feasible to reach a longer transmission range. It makes up with an 8051 core, 256 KB flash, two crystals, and power filter. The robust design and the high performance make it popular in ZigBee applications, including smart home, smart building and the industry control and monitoring.

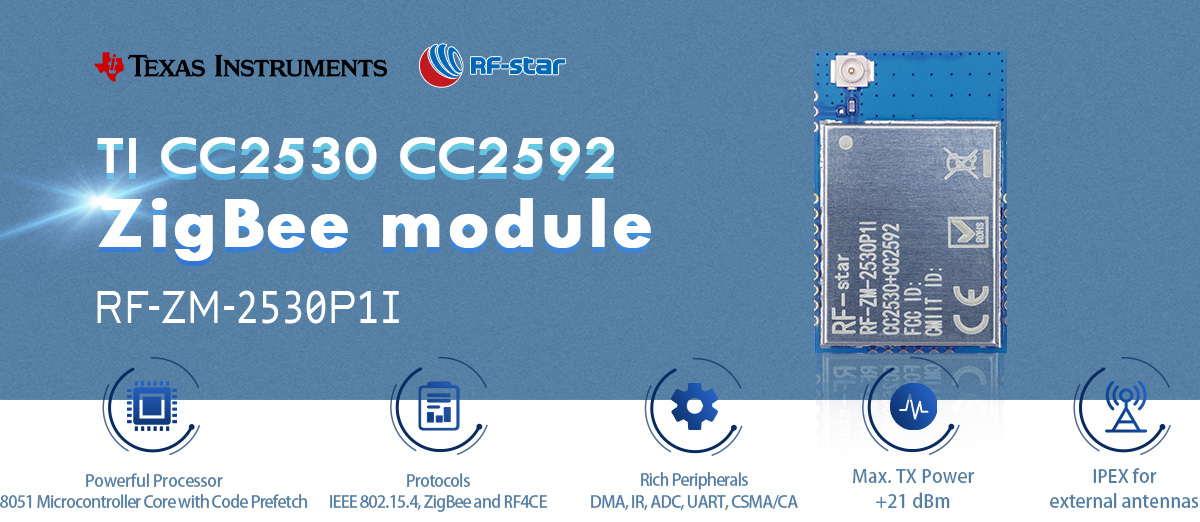

RF-ZM-2530P1I CC2530 CC2592 ZigBee Module with Power Amplifier and IPEX Connector


- Applications -

· RF4CE remote Control Systems

· Smart Home

· Smart Building

· Monitoring system

· Consumer electronics

· Health care

Applications of CC2530 and CC2592 Zigbee Module


Related Resources:

RF-star Releases Zigbee Modules Over CC2530


Wireless SoC:

  • High-performance and low-power 8051 microcontroller core with code prefetch
  • TX power: Up to 21 dBm
  • Sensitivity:
    • -100 dBm @ IEEE 802.15.4
  • Memory
    • 256 kB flash
    • 8 kB RAM


Features:

  • ZigBee
  • IEEE 802.15.4
  • RF4CE



Operating Range:


  • Supply voltage range 2.0 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C


Rich Peripherals:


  • 16 GIPs
  • DMA
  • IR
  • ADC
  • UART
  • CSMA/CA



TI CC2530 Series ZigBee Modules
Part Number RF-ZM-2530P1I RF-ZM-2530P1 RF-ZM-2530B1I RF-ZM-2530B1 WE1005
Photo CC2530, CC2952 Zigbee module RF-ZM-2530P1I CC2530, CC2952 Zigbee module RF-ZM-2530P1 CC2530 Zigbee module RF-ZM-2530B1I CC2530 Zigbee module RF-ZM-2530B1 CC2530 Zigbee module WE1005
IC CC2530, CC2952 CC2530, CC2952 CC2530 CC2530 CC2530
Core 8051 8051 8051 8051 8051
Antenna IPEX PCB IPEX PCB PCB
RAM 8 KB 8 KB 8 KB 8 KB 8 KB
Flash 256 KB 256 KB 256 KB 256 KB 256 KB
Protocols ZigBee, IEEE 802.15.4, RF4CE ZigBee, IEEE 802.15.4, RF4CE ZigBee, IEEE 802.15.4, RF4CE ZigBee, IEEE 802.15.4, RF4CE ZigBee, IEEE 802.15.4, RF4CE
Power Supply 2.0 V ~ 3.8 V, recommend to 3.3 V 2.0 V ~ 3.8 V, recommend to 3.3 V 2.0 V ~ 3.8 V, recommend to 3.3 V 2.0 V ~ 3.8 V, recommend to 3.3 V 2.0 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +19 dBm +19 dBm +4.5 dBm +4.5 dBm +4.5 dBm
Receiving Sensitivity -97 dBm -97 dBm -97 dBm -97 dBm -97 dBm
GPIO 17 17 17 17 19
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +105 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 1000 m  (external glue stick antenna) 800m 300 m (external glue stick antenna) 200 m 200 m
Dimension (mm) 25.5 x 16.3 x 2.2 25.5 x 16.3 x 2.1 22.3 x 15.3 x 2.1 22.3 x 15.3 x 2.1 22.0 x 16.0 x 2.3
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
Functions Longer transmission range, Zigbee network processor Longer transmission range, Zigbee network processor High stability, Zigbee network processor High stability, Zigbee network processor High stability, Zigbee network processor
