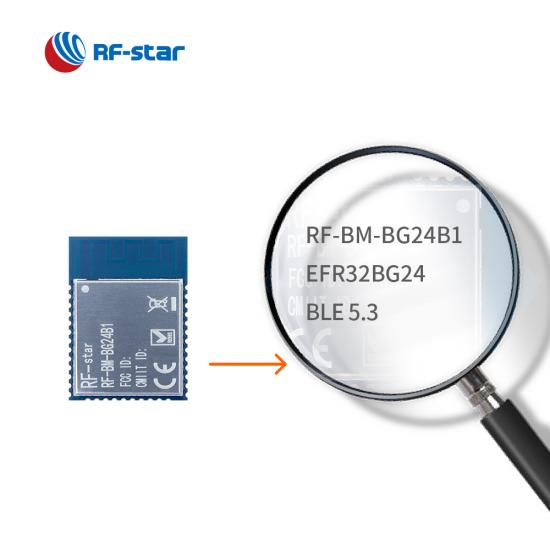

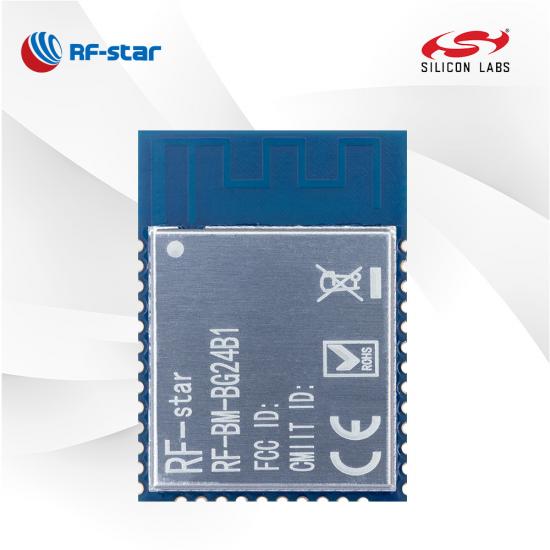

RF-BM-BG24B1 is an IoT wireless connectivity module on Bluetooth 5.3 Low energy and Bluetooth Mesh. It integrated the powerful MCU ARM Cortex-M33, two crystals, rich memory resources, the antenna matching circuit and the high-performance snake-structure PCB antenna. The compact design with 30 GPIOs makes the EFR32BG24 module popular in energy-efficient, smart, and robust smart home and portable medical products. Moreover, it is also geared for Mesh networking solution. The rich resources and peripherals will help you easily embed it to the complex network applications.
Wide Peripherals

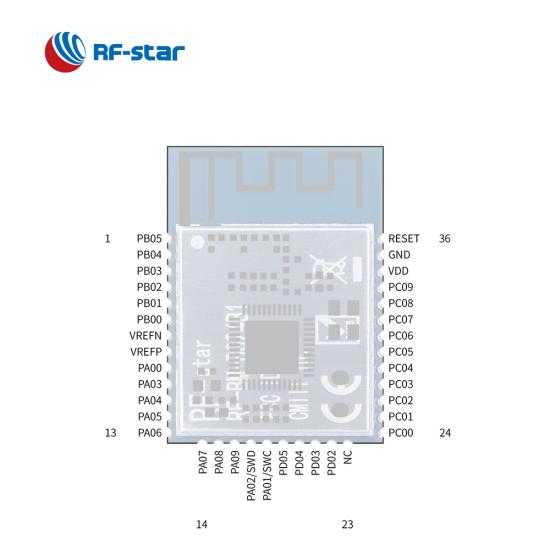

RF-BM-BG24B1 module offers 30 GPIOs in stamp half-hole package and supports rich peripherals such as IADC, ACMP, VADC, LDMA, UART, SPI, I2C, Watchdog, etc.
Low Power Consumption
1.3 μA EM2 in sleep mode and 4.4 mA RX current (1 Mbps GFSK) in active mode expand the battery life in Bluetooth Mesh applications.
Bluetooth Mesh Network
Thanks to supporting BLE5.3, Bluetooth Mesh, and 2.4 GHz Proprietary protocols, the BG24 module can communicate with many-to-many mesh nodes, which makes it popular in smart home, building automation and lighting applications.
Rich Memory
The Bluetooth 5.3 module integrate a 39 MHz crystal and a 32.768 kHz crystal, up to 1024 KB programmable flash, and 128 KB RAM making it possible in many complex applications.
