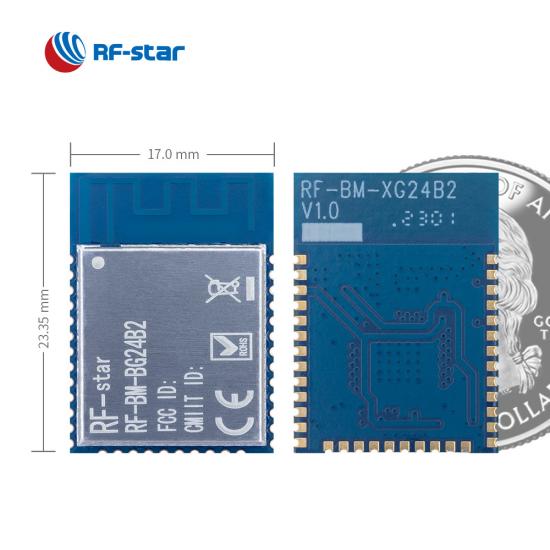

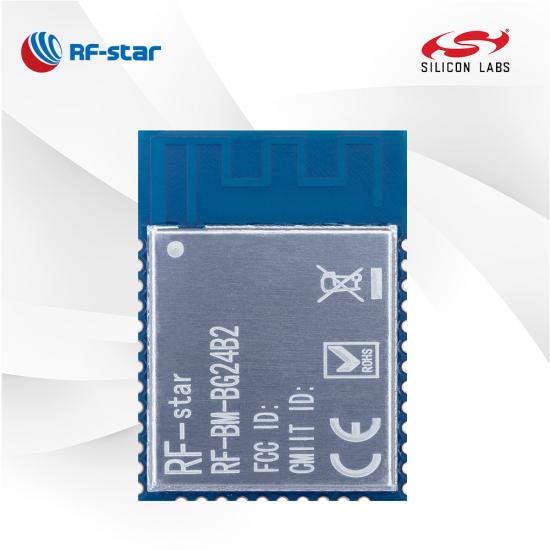

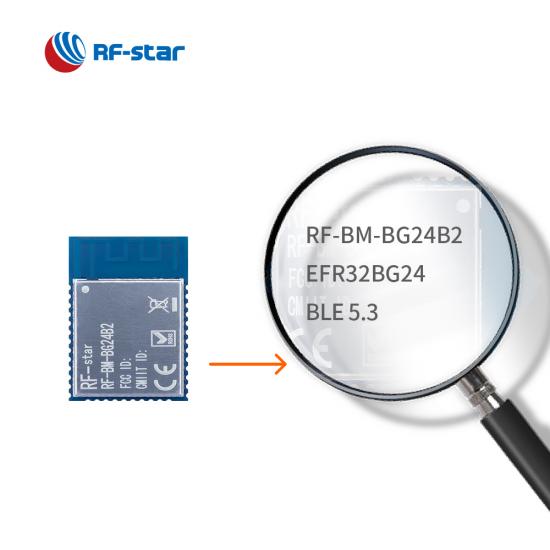

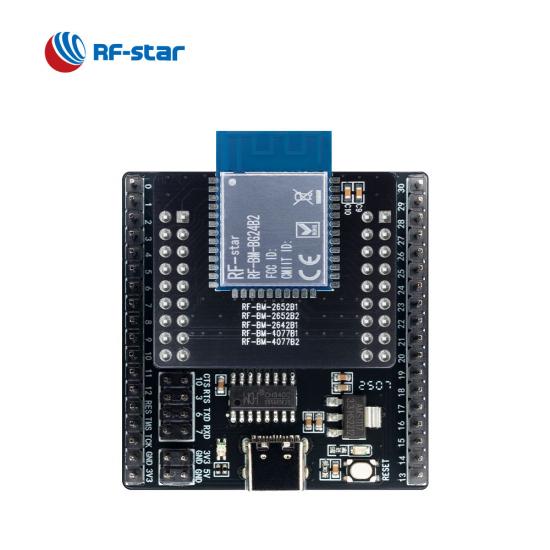

RF-BM-BG24B2 is a BLE5.3 module based on Silicon Labs EFR32BG24 SoC. This EFR32BG24 module integrates a high-performance 32-bit 76.8 MHz ARM® Cortex®-M33 Core, 1024 KB flash and 128 KB RAM, two crystals, the matching circuit, the onboard PCB antenna and the related RF tuning circuit. 30 GPIOs and up to 19.5 dBm enable customers to design their firmware with complex network and application functions and reach the ideal communication range. The long range module supports the AoA/AoD direction finding, and Bluetooth Mesh. Its rich resources, high anti-interference, and high security render the high-performance RF module to be widely utilized in smart home, and portable medical devices and sensors.
Rich Memory
The Bluetooth 5.3 module integrate a 39 MHz crystal and a 32.768 kHz crystal, up to 1024 KB programmable flash, and 128 KB RAM making it possible in many complex applications.
Wide Peripherals

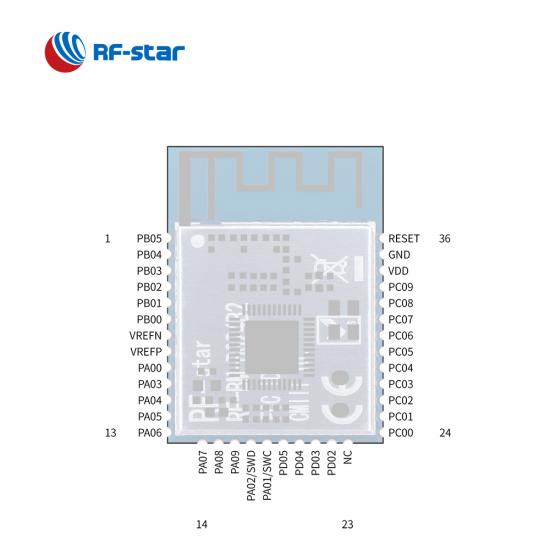

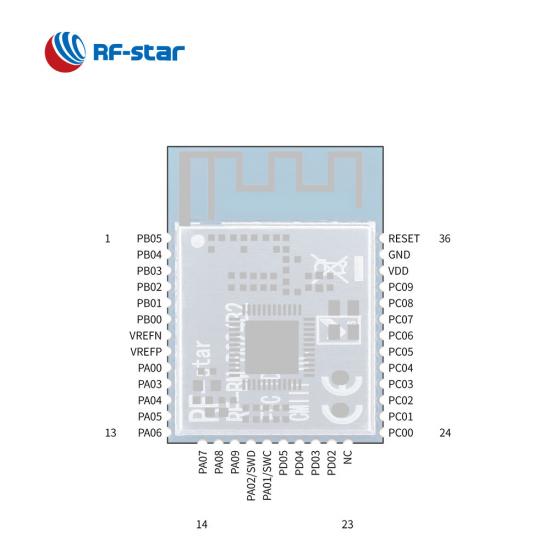

The same to BG24B1, RF-BM-BG24B2 module also provides30 GPIOs in stamp half-hole package and supports rich peripherals such as IADC, ACMP, VADC, LDMA, UART, SPI, I2C, Watchdog, etc.
Multiprotocol 2.4 GHz Transceiver
Based on Silicon Labs multiprotocol EFR32BG24 chipset, the 2.4GHz module is compatible with Bluetooth® 5.3 Low Energy, Bluetooth Mesh, and 2.4 GHz Proprietary, applying to many-to-many mesh nodes
Max. TX Power
With integrated power amplifier, the maxium TX power of the BG24 Bluetooth LE module is up to 19.5 dBm, to help you achieve a longer transmission range and a higher RF performance.
