RF-ZM-2530B1 CC2530 ZigBee Module

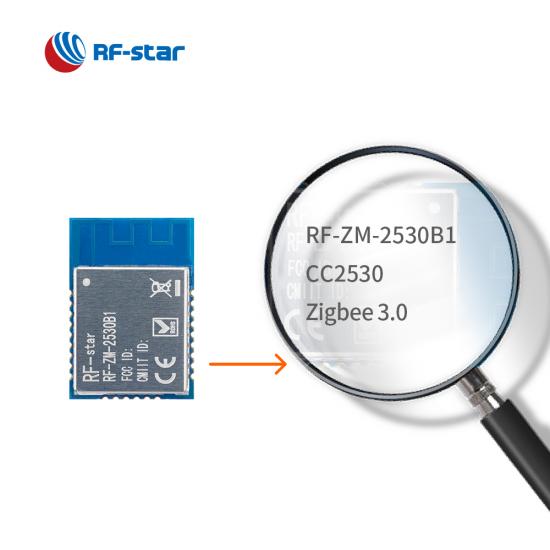

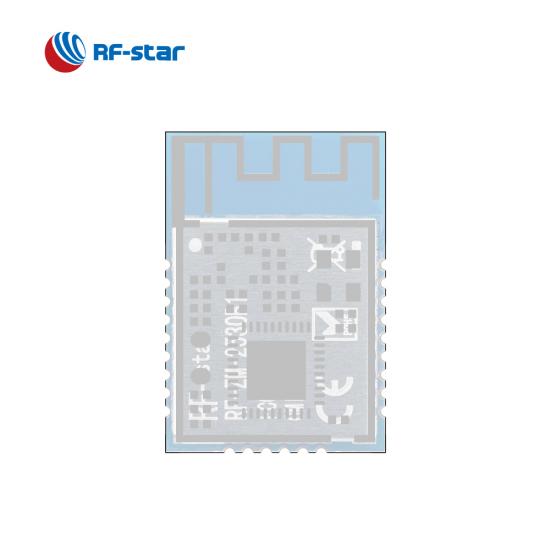

  • CC2530 2.4G ZigBee module RF-ZM-2530B1
  • CC2530 2.4G ZigBee module RF-ZM-2530B1

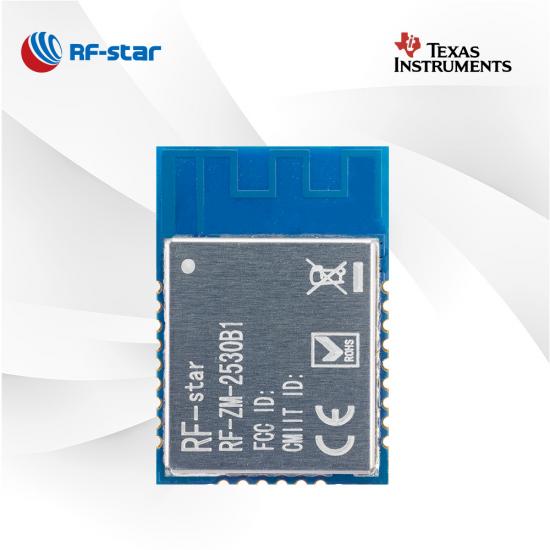

  • CC2530 2.4G ZigBee module RF-ZM-2530B1
  • CC2530 2.4G ZigBee module RF-ZM-2530B1

RF-ZM-2530B1 CC2530 ZigBee Module

RF-ZM-2530B1 module is designed for the IEEE 802.15.4, ZigBee and RF4CE applications with battery-powered needs. The small size can meet the requirements of most of the smart home appliances. Choose CC2530 ZigBee module to start your design.

  • P/N:

    RF-ZM-2530B1

  • SoC:

    CC2530

  • Processor:

    8051 Microcontroller Core with Code Prefetch

  • Protocols:

    ZigBee

  • Working Frequency:

    2394 MHz ~ 2507 MHz

  • Package (mm):

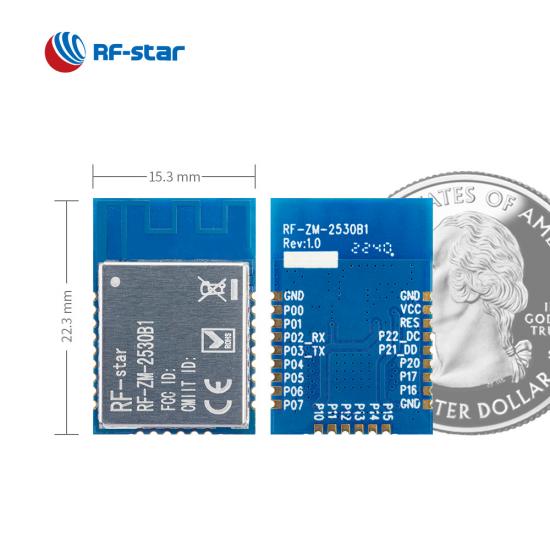

    22.3 × 15.3 × 2.1, half-hole, 1.27 pitch, 24-pin

  • Features:

    IEEE 802.15.4, Radio Frequency for Consumer Electronics (RF4CE)

  • GPIO:

    19

  • Max. TX Power:

    +4.5 dBm

  • Transmission Range:

    200 m
Inquiry Now

RF-ZM-2530B1 is a 2.4 GHz ZigBee module based on TI CC2530. It features low-power, low-cost, low-latency control, strong anti-interference ability and long transmission range. The design of this module makes it easy to implement networking for ZigBee Remote Control and ZigBee Input Devices. And it can set up a simple and robust two-way wireless connectivity among different vendors.

Features of CC2530 2.4 GHz ZigBee module


- Applications -

· RF4CE Remote Control Systems

· 2.4-GHz IEEE 802.15.4 Systems

· Home/Building Automation

· Lighting Systems

· Health Care

· ZigBee Systems

Applications of CC2530 2.4 GHz ZigBee module



Related Resources:

RF-star Releases Zigbee Modules Over CC2530


Wireless SoC:

  • High-performance and low-power 8051 microcontroller core with code prefetch
  • TX power: Up to +4.5 dBm
  • Sensitivity:
    • -85 dBm @ IEEE 802.15.4
  • Memory
    • 256 kB flash
    • 8 kB RAM


Features:

  • ZigBee
  • IEEE 802.15.4
  • RF4CE


Operating Range:


  • Supply voltage range 2.0 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C

Rich Peripherals:

  • DMA
  • IR
  • ADC
  • UART
  • CSMA/CA
TI CC2530 Series ZigBee Modules
Part Number RF-ZM-2530P1I RF-ZM-2530P1 RF-ZM-2530B1I RF-ZM-2530B1 WE1005
Photo CC2530, CC2952 Zigbee module RF-ZM-2530P1I CC2530, CC2952 Zigbee module RF-ZM-2530P1 CC2530 Zigbee module RF-ZM-2530B1I CC2530 Zigbee module RF-ZM-2530B1 CC2530 Zigbee module WE1005
IC CC2530, CC2952 CC2530, CC2952 CC2530 CC2530 CC2530
Core 8051 8051 8051 8051 8051
Antenna IPEX PCB IPEX PCB PCB
RAM 8 KB 8 KB 8 KB 8 KB 8 KB
Flash 256 KB 256 KB 256 KB 256 KB 256 KB
Protocols ZigBee, IEEE 802.15.4, RF4CE ZigBee, IEEE 802.15.4, RF4CE ZigBee, IEEE 802.15.4, RF4CE ZigBee, IEEE 802.15.4, RF4CE ZigBee, IEEE 802.15.4, RF4CE
Power Supply 2.0 V ~ 3.8 V, recommend to 3.3 V 2.0 V ~ 3.8 V, recommend to 3.3 V 2.0 V ~ 3.8 V, recommend to 3.3 V 2.0 V ~ 3.8 V, recommend to 3.3 V 2.0 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +19 dBm +19 dBm +4.5 dBm +4.5 dBm +4.5 dBm
Receiving Sensitivity -97 dBm -97 dBm -97 dBm -97 dBm -97 dBm
GPIO 17 17 17 17 19
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +105 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 1000 m  (external glue stick antenna) 800m 300 m (external glue stick antenna) 200 m 200 m
Dimension (mm) 25.5 x 16.3 x 2.2 25.5 x 16.3 x 2.1 22.3 x 15.3 x 2.1 22.3 x 15.3 x 2.1 22.0 x 16.0 x 2.3
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
Functions Longer transmission range, Zigbee network processor Longer transmission range, Zigbee network processor High stability, Zigbee network processor High stability, Zigbee network processor High stability, Zigbee network processor
