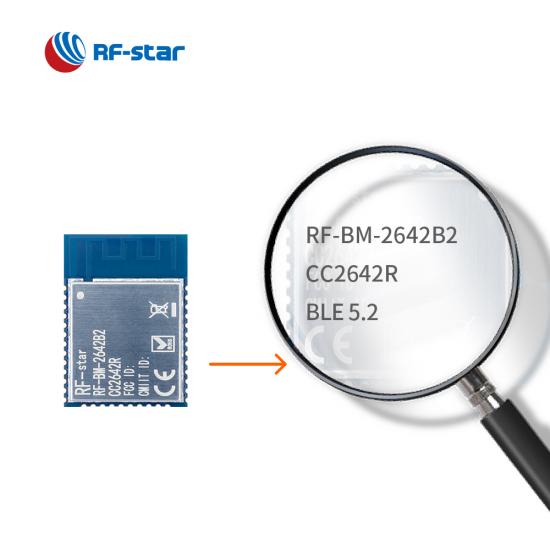

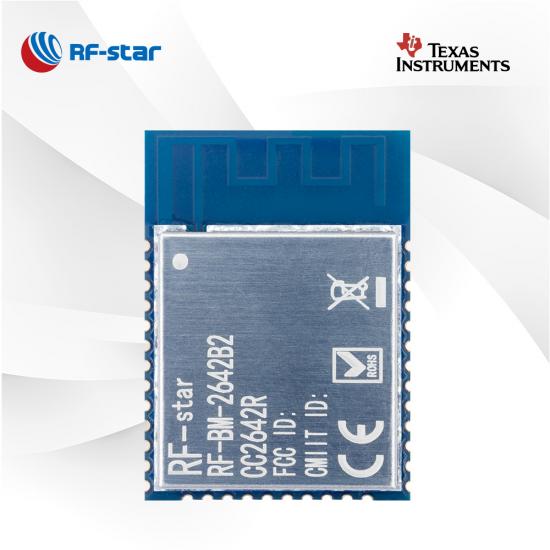

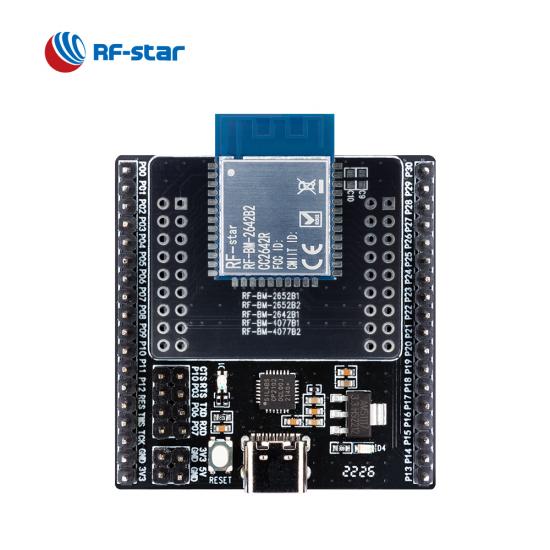

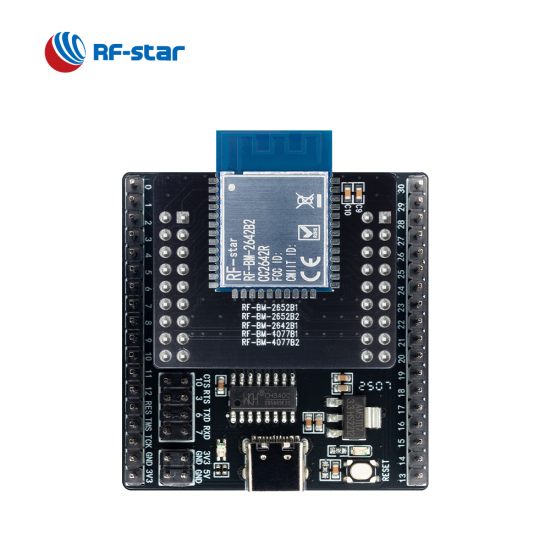

Newest TI CC2642R Bluetooth 5.2 Low Energy Module RF-BM-2642B2

RF-BM-2642B2 is a Bluetooth 5.2 Low Energy module designed for the high-performance requirements of IoT products. The direction-finding feature enables the module to meet the needs of a wide range of applications. Start your design with RF-BM-2642B2 CC2642R UART module.

  • P/N:

    RF-BM-2642B2

  • SoC:

    CC2642R

  • Processor:

    48 MHz ARM® Cortex®-M4F

  • Protocols:

    Bluetooth 5.2 low energy

  • Working Frequency:

    2402 MHz ~ 2480 MHz

  • Package (mm):

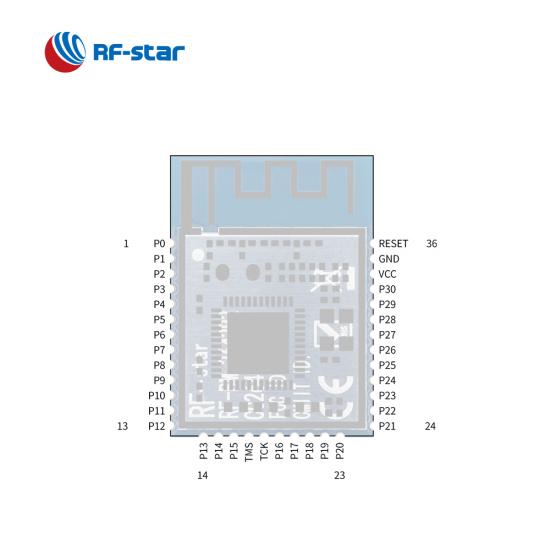

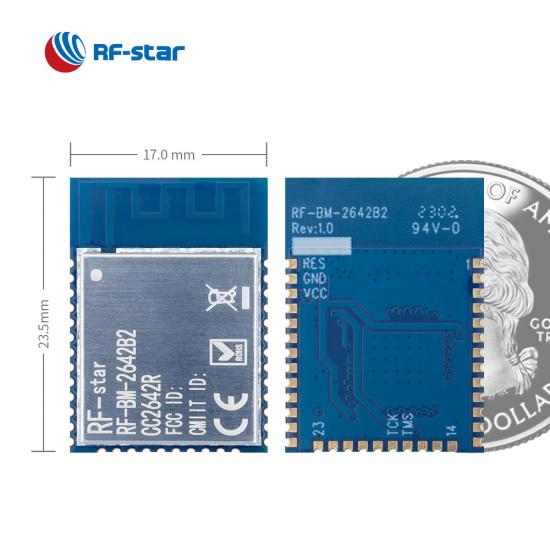

    23.5 × 17.0 × 2.2, half-hole, 1.27 pitch, 36-pin

  • Features:

    LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), Advertising extension, Direction finding, Bluetooth mesh

  • GPIO:

    31

  • Max. TX Power:

    +5 dBm

  • Transmission Range:

    150 m
Inquiry Now

RF-BM-2642B2 BLE5.2 module is optimized for low-power wireless communication and advanced sensing applications. It integrates the powerful TI CC2642R SoC, a 48 MHz crystal, a 32.768 kHz crystal, 352 kB of in-system programmable flash, 256 kB ROM, an LC filter, and a high-performance PCB onboard antenna. The ARM® Cortex®-M4F core processor enables the CC2642R module to operate at an extremely low current at flexible power modes and feature a small size, robust connection distance, and rigid reliability. The Bluetooth Low Energy module also can be pre-programmed with a transparent transmission protocol embedded with 1M PHY and 2M PHY data rate, BLE long range, advertising extension packets. Using TI SimpleLink™ CC13x2 and CC26x2 Software Development Kit (SDK), the module can be used for Bluetooth Mesh and real-time localization (RTLS) applications.

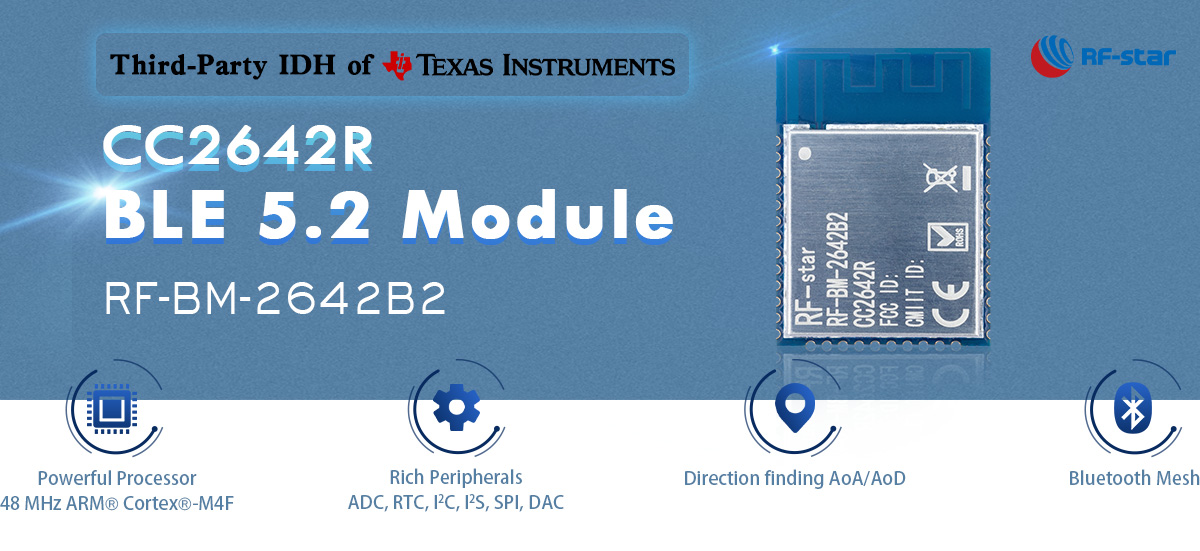

Features of CC2642R BLE 5.2 Module RF-BM-2642B2


- BLE 5.0 Transparent Transmission (Bridge) Protocol -

· Several roles: Master, Slave, Master-slave, Beacon

· Multi-connections: One Master & Seven Slaves at the same time

· Custom Service UUID

· User Authentication

· Automatic reconnection

BLE 5.0 Transparent Transmission Protocol of CC2642R Module RF-BM-2642B2

Related Resources:

CC2642R-Q1 Automotive Grade BLE Module Empowers Connected Vehicles

What RFBM2642B1 CC2642R BLE Module Can Do?

Differences Among CC2642R, CC2640 & CC2640R2F


Wireless SoC:

  • 48 MHz ARM® Cortex®-M4F processor
  • TX power: Up to +5 dBm
  • Sensitivity in BLE mode: -97 dBm
  • Memory
    • -352 kB flash
    • -256 kB ROM
    • -80 kB SRAM


Features:

  • Bluetooth 4.2 low energy
  • Bluetooth 5.0 low energy
  • Bluetooth Mesh
  • Direction Finding


Current Consumption:

  • 1.88 μA in sleep mode
  • 101.94 μA at 200 ms broadcast cycle
  • 77.07 μA at 100 ms connection cycle

Operating Range:

  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C


Rich Peripherals:

  • 12-bit ADC
  • DAC
  • 31 GPIOs
  • SPI
  • I²C
  • I²S
  • RTC
  • UART (CTS/RTS)
TI CC264x Series BLE Modules
Part Number RF-BM-2642QB1I RF-BM-2642B1 RF-BM-2642B2 RF-BM-4055B1L RF-BM-4077B1L RF-BM-4077B1 RF-BM-4044B5 RF-BM-4044B4 RF-BM-4044B3 RF-BM-4044B2
Photo RF-BM-2642QB1I CC2642R-Q1 BLE Module RF-BM-2642B1 CC2642R BLE Module RF-BM-2642B2 CC2642R BLE Module RF-BM-4055B1L CC2640R2LRHB BLE Module RF-BM-4077B1L CC2640R2LRGZ BLE Module RF-BM-4077B1 CC2640R2FRGZ BLE Module RF-BM-4044B5 CC2640R2F BLE Module RF-BM-4044B4 CC2640R2F BLE Module RF-BM-4044B3 CC2640R2F BLE Module RF-BM-4044B2 CC2640R2F BLE Module
IC CC2642R-Q1 CC2642R CC2642R CC2640R2LRHB CC2640R2LRGZ CC2640R2FRGZ CC2640R2FRSM CC2640R2FRSM CC2640R2FRSM CC2640R2FRSM
Core 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3
Antenna IPEX PCB PCB PCB PCB PCB Chip/Half-Hole Interface Chip/Half-Hole Interface IPEX PCB
RAM 88 KB 88 KB 88 KB 28 KB 28 KB 28 KB 28 KB 28 KB 28 KB 28 KB
Flash 352 KB 352 KB 352 KB 128 KB 128 KB 128 KB 128 KB 128 KB 128 KB 128 KB
Protocols BLE5.2 BLE5.2 BLE5.2 BLE5.3 BLE5.3 BLE5.3 BLE5.3 BLE5.3 BLE5.3 BLE5.3
Power Supply 1.8 V ~ 3.63 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +5 dBm +5 dBm +5 dBm +5 dBm +5 dBm +5 dBm +2 dBm +2 dBm +2 dBm +2 dBm
Receiving Sensitivity -97 dBm @ BLE 1M PHY -105 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -105 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -105 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY
GPIO 31 31 31 13 31 31 10 10 10 10
Working Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 200 m @ 1M PHY 300m @ LE Coded PHY 110 m @ 1M PHY 160 m @ LE Coded PHY 140 m @ 1M PHY 255 m @ LE Coded PHY 60 m @ 1M PHY 90 m @ LE Coded PHY 70 m @ 1M PHY 100 m @ LE Coded PHY 80 m @ 1M PHY 110 m @ LE Coded PHY Chip Antenna 30 m @ 1M PHY 60 m @ LE Coded PHY Chip Antenna 20 m @ 1M PHY 50 m @ LE Coded PHY External PCB antenna 110 m @ 1M PHY 150 m @ LE Coded PHY 60 m @ 1M PHY 90 m @ LE Coded PHY
Dimension (mm) 21.5 x 17.0 x 2.2 23.5 x 17.0 x 2.2 23.5 x 17.0 x 2.2 15.2 x 11.2 x 1.7 23.5 x 17.0 x 1.7 23.5 x 17.0 x 1.7 10.5 x 8.5 x 2.0 8.0 x 8.0 x 1.5 15.2 x 11.2 x 2.1 16.6 x 11.2 x 1.7
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA √ √ √ √ √ √ √ √ √ √
Bluetooth Mesh √ √ × × × × × × × ×
Long Range √ √ √ √ √ √ √ √ √ √
2Mbps PHY √ √ √ √ √ √ √ √ √ √
AoA/AoD √ √ √ × × √ √ √ √ √
UART Protocol Master-slave simultaneously Master-slave simultaneously Master-slave simultaneously Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave
Functions AEC-Q100 Grade High anti-interference performance High anti-interference performance High Cost-Effective High Cost-Effective 31 GPIOs for more avaliable applications Small dimension, Double-side pads Ultra-small dimension Feasible for external antennas High stablity
