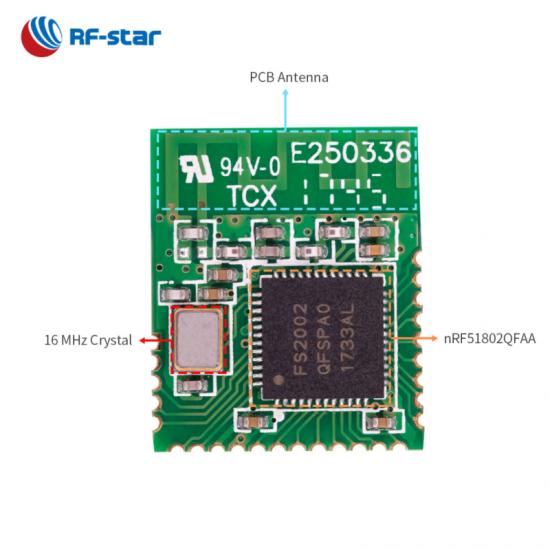

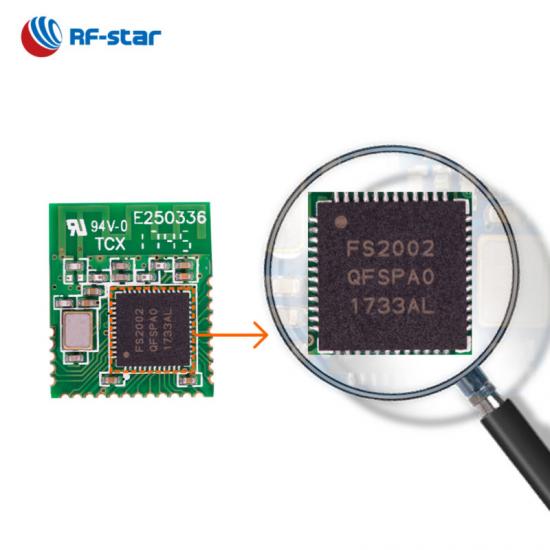

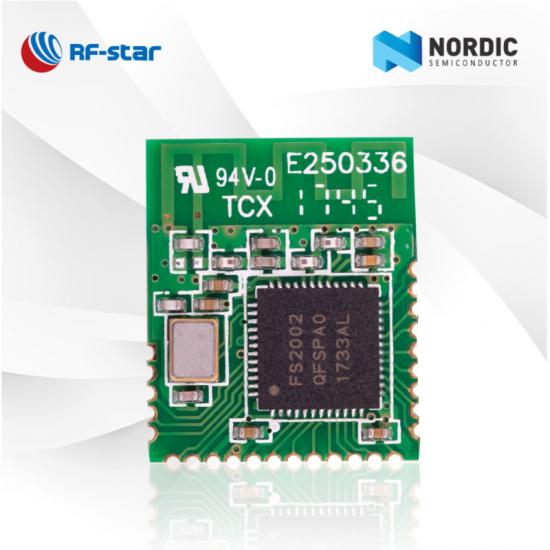

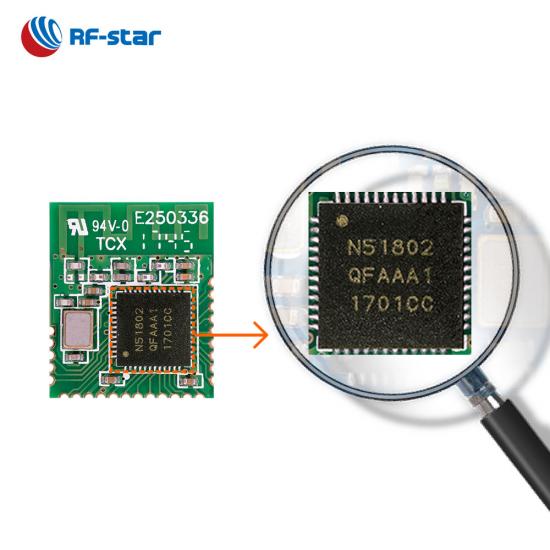

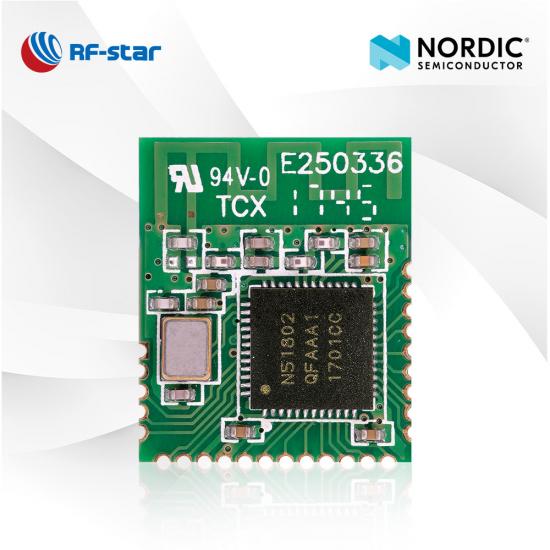

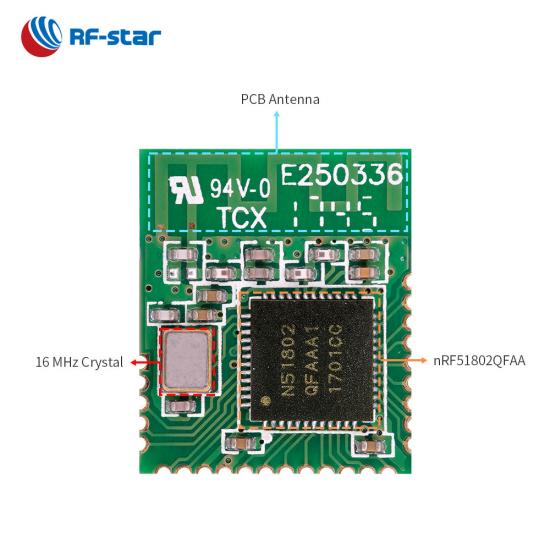

RF-BM-ND02C is a Bluetooth 4.2 low enenrgy module based on Nordic SoC nRF51802. It integrates the main processor of 32-bit 16 MHz ARM® Cortex®-M0, a 16 MHz crystal, an LC filter, and a meander line inverted-F PCB antenna. ND02C can be pre-programmed with SPI master/slave, I²C master and UART for simple programming. This transceiver module features compact size, a long transmission range, high reliability, ultra-low power consumption. 1.27-mm pitch stamp stick package is for easy assembling and cost-effective PCB design.
Rich Peripheral & Interfaces
The nRF51802 module RF-BM-ND02C has numerous digital peripherals and interfaces such as UART, SPI, and I2C.
Good Compatibility
RF-BM-ND02C is pin-2-pin compatible with Nordic nRF51822 module RF-BM-ND02.
Compact Size

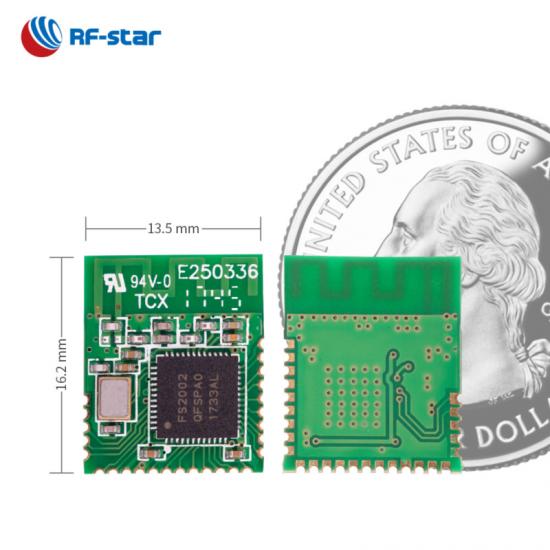

The BLE4.2 module is available in a 16.2 mm x 13.5 mm x 1.3 mm stamp half-hole package, which is the smaller one among the Nordic nRF51 series BLE modules.
High Security
The Advanced Encryption Standard (AES) HW co-processor of the module protects the encrypted data in a secure status.

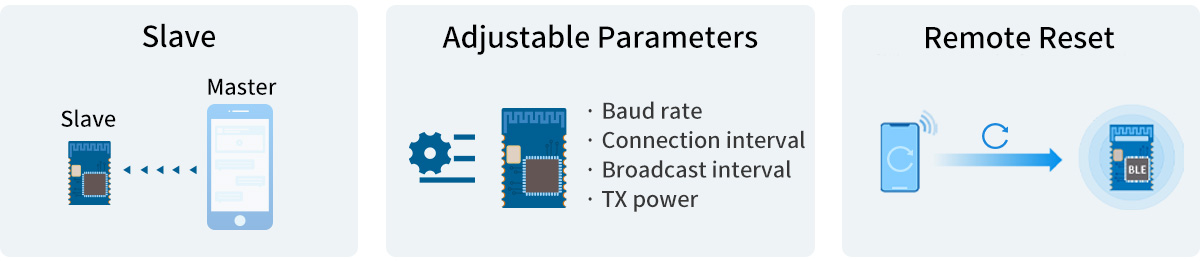

- Transparent Transmission (Bridge) Protocol -
· Slave
· Adjustable parameters: baud rate, connection interval, broadcast interval, TX power…
· Remote reset
