RF-DG-52PAS CC2652P USB Dongle

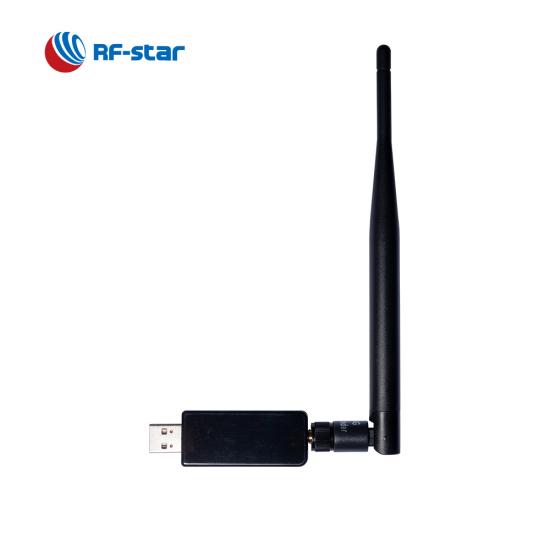

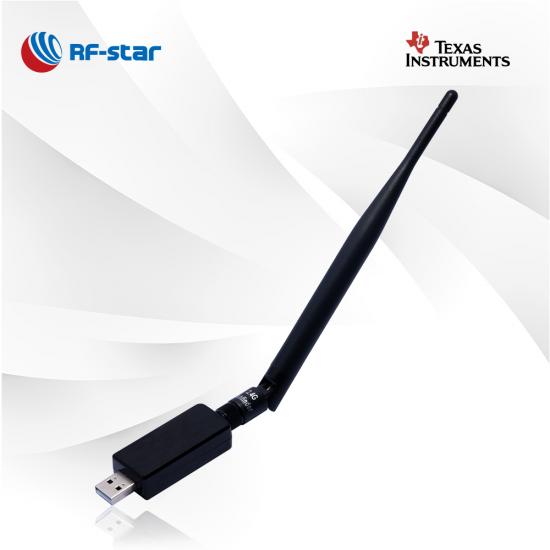

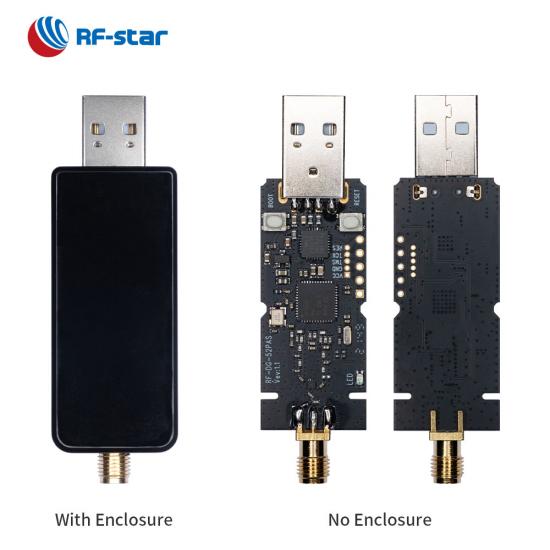

  • CC2652P ZigBee USB Dongle Router with SMA Interface External Antenna
  • CC2652P ZigBee USB Dongle Router with SMA Interface External Antenna
  • CC2652P ZigBee USB Dongle Router with SMA Interface External Antenna

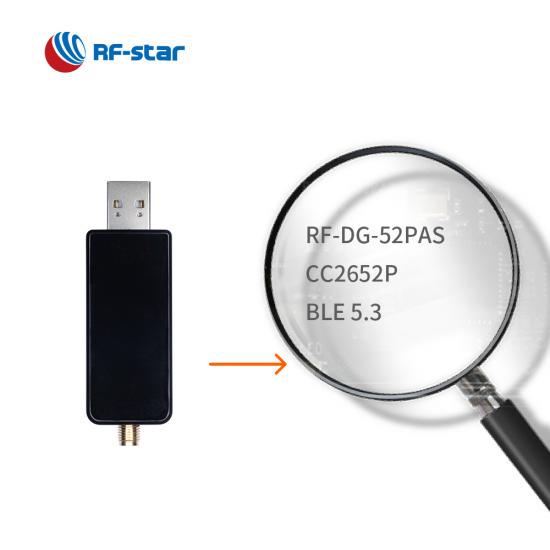

RF-DG-52PAS CC2652P USB Dongle

RF-DG-52PAS is a USB dongle developed for ZigBee 3.0 application. The CC2652P dongle with SMA interface external antenna is usually used as a ZigBee gateway.

  • P/N:

    RF-DG-52PAS

  • SoC:

    CC2652P

  • Processor:

    48 MHz ARM® Cortex®-M4F

  • Protocols:

    BLE5.1, Thread, ZigBee, Wi-SUN, IEEE 802.15.4, 6PoWPAN

  • Working Frequency:

    2402 MHz ~ 2480 MHz

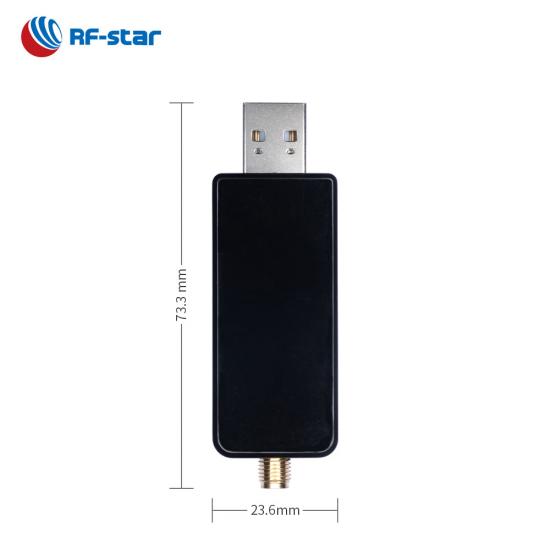

  • Package (mm):

    73.3 mm × 23.6 mm × 14.1 mm

  • Features:

    SMA interface external antenna

  • Max. TX Power:

    +20 dBm

  • Transmission Range:

    700 m
Inquiry Now

RF-DG-52PAS is a ZigBee 3.0 USB Dongle based on TI CC2652P.  The ZigBee dongle can be pre-flashed with Z-Stack firmware, so that it is able to work as a ZigBee coordinator to achieve of management of various sub-devices or nodes based on CC2530, CC2531, nRF52840, EFR32MG21, etc. Not only that, but it also is regarded as a router to manage the number of terminal devices. The CC2652P dongle is widely used in ZHA (ZigBee Home Automation) or ZigBee2MQTT, which allows the users to connect several ZigBee-based devices directly to Home Assistant, NodeRED and many other APPs.


Features of ZigBee 3.0 USB Dongle based on TI CC2652P


- Application -

· Smart Home

· ZigBee gateway

· ZigBee coordinator

· ZigBee Hub

· Home automation

· Intelligent Home


Reference Resource:

What Is A USB Dongle?

ZigBee 3.0 DONGLE RF-DG-52PAS


USB Dongles
Part Number RF-DG-22A RF-DG-40A RF-DG-32B RF-DG-52PA RF-DG-52PAS USB Dongle
Photo EFR32BG22 USB Dongle RF-DG-22A nRF52840 USB Dongle RF-DG-40A nRF52832 USB Dongle RF-DG-32B CC2652P USB Dongle RF-DG-52PA CC2652P USB Dongle RF-DG-52PAS CC2650 USB Dongle
IC EFR32BG22C224 nRF52840 nRF52832 CC2652P CC2652P CC2540
Core 76.8 MHz ARM Cortex-M33 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 8051
Antenna PCB PCB (IPEX connector leads out the NFC signal) PCB PCB SMA Connector PCB
RAM 32 KB 256 KB 64 KB 88 KB 88 KB 8 KB
Flash 512 KB 1 MB 512 KB 352 KB 352 KB 256 KB
Protocols Observer, BLE master-slave protocol Sniffer (ZigBee/BLE), Bootloader, BLE master-slave protocol Sniffer (BLE only), BLE master-slave protocol ZigBee Coordinator ZigBee Coordinator Beacon, Sniffer, HID, HCI, , BLE slave protocol
Max. TX Power +6 dBm +8 dBm +4 dBm +20 dBm +20 dBm +4 dBm
PCBA Dimension (mm) 56.7 x 13.9 x 4.5 60 x 18.5 x 4.5 56.7 × 13.9 × 4.5 62.8 × 16.7 × 4.5 73.3 × 20 × 7.5 19.8 × 9.7 × 4.5
Overal Dimension (mm) 62.9 x 20.2 x 8.0 N/A 62.9 x 20.2 x 8.0 N/A 73.3 × 23.6 × 14.1 21.7 × 14.3 × 5.3
Functions Beacon data monitor, BLE data packets capture, BLE gateway Support PC nRF Connect, Support capture all BLE5.0 data packets, Can replace NORDIC Dongle Support capture BLE5.0 data packets (except Long Range and Mesh) Support open source platform ZHA and Zigbee2MQTT, Up to 20 dBm TX power with onboard PCB antenna, Smart home gateway Support open source platform ZHA and Zigbee2MQTT, SMA connector for feasible external antennas, Smart home gateway Small dimension, High cost-effective, Support TI Sniffer desktop tool, USB sensor, USD adapter
