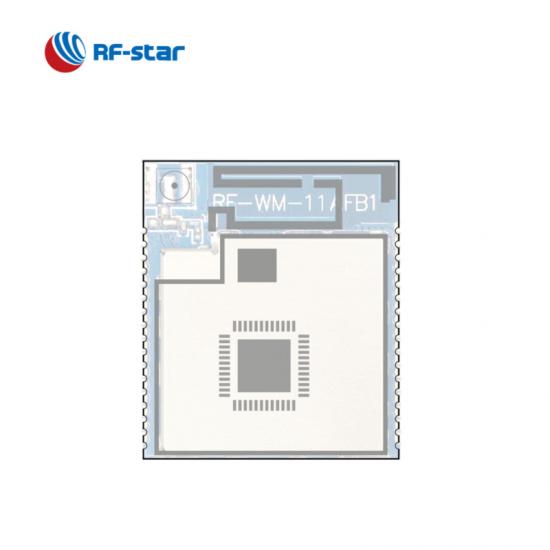

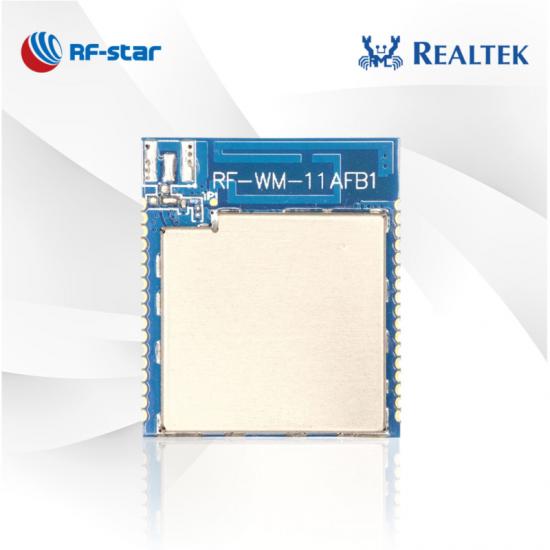

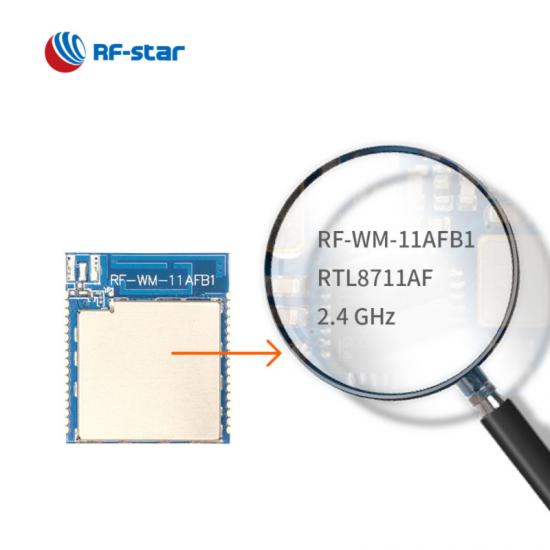

RealTek RTL8711AF WLAN Wi-Fi Module RF-WM-11AFB1

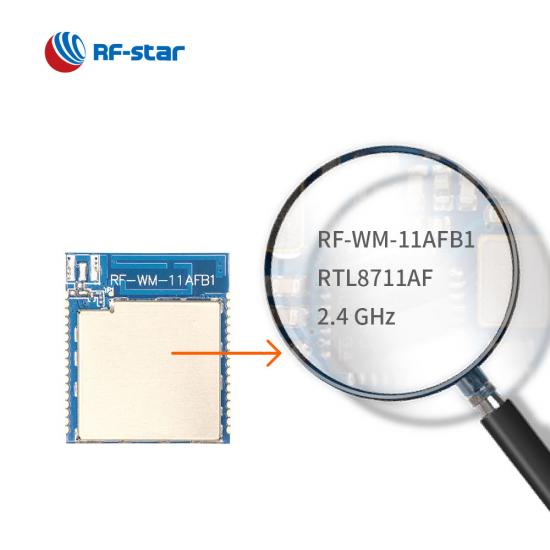

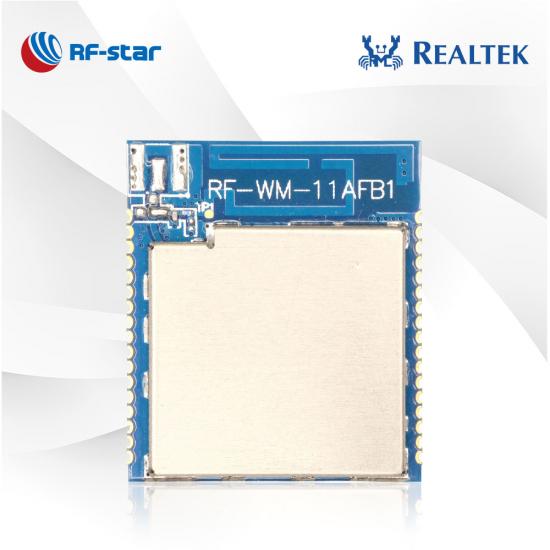

  • RealTek RTL8711AF WLAN /Wi-Fi Module RF-WM-11AFB1
  • RealTek RTL8711AF WLAN /Wi-Fi Module RF-WM-11AFB1
  • RealTek RTL8711AF WLAN /Wi-Fi Module RF-WM-11AFB1
  • RealTek RTL8711AF WLAN /Wi-Fi Module RF-WM-11AFB1

RealTek RTL8711AF WLAN Wi-Fi Module RF-WM-11AFB1

RF-WM-11AFB1 is a Wi-Fi module targeted at the low-power markets. The module with rich resources makes it popular in the Internet of Things applications.

  • P/N:

    RF-WM-11AFB1

  • SoC:

    RTL8711AF

  • Processor:

    ARM® Cortex™-M3 (up to 166 MHz)

  • Protocols:

    2.4 GHz 1T1R 802.11 b/g/n up to 150 Mbps; 20 MHz and 40 MHz

  • Working Frequency:

    2401 MHz ~ 2484 MHz

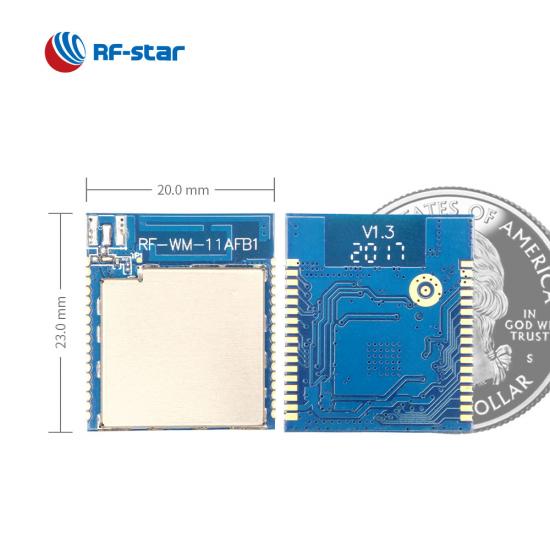

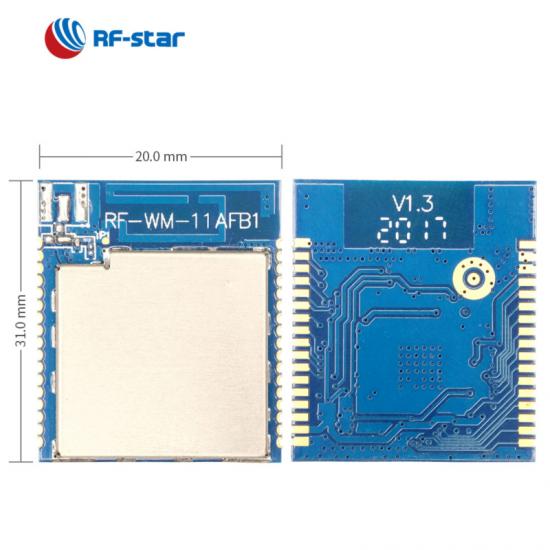

  • Package (mm):

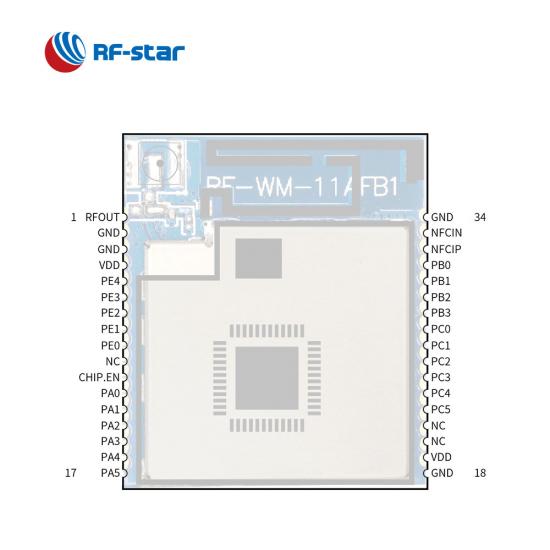

    23.0 × 20.0 × 2.4, half-hole, 1.27 pitch, 33-pin

  • Features:

    Three RF output modes of PCB, IPEX and half-hole

  • GPIO:

    21

  • Max. TX Power:

    +17 dBm (11 Mbps @ CCK)

  • Transmission Range:

    300 m
Inquiry Now

RF-WM-11AFB1 is a wireless module based on Realtek RTL8711AF. The module integrates WLAN MAC, a 1T1R capable WLAN baseband/RF and NFC functions. Its main MCU 166 MHz ARM® Cortex™-M3 and the bigger ROM/RAM/flash resources make it possible to deal with a large quantity of data. Its RF option enables the module in applications to have a chance to reach different ranges and reduce the end product RF development work. The wifi module also supports the serial port transmission and AT commands to set the parameters. The protocol supports AP mode, Station (STA) mode and AP+Station mode.


RTL8711AF WLAN Wi-Fi Module RF-WM-11AFB1

Powerful Processor

Up to 166 MHz ARM® Cortex™-M3 makes the Wi-Fi module perform well in various industries.

Rich Peripherals

SDIO, UART, SPI, I2S, I2C, PWM, PCM are available.

Multiple Protocols

2.4 GHz 1T1R 802.11 b/g/n, 72.2 Mbps receiving and transmitting PHY rate using 20 MHz bandwidth, 150 Mbps receiving and transmitting PHY rate using 40 MHz bandwidth.

High Security

Provide low SW computing and high-performance encryption, supported authentication algorithms: MD5, SHA-1, SHA-2 (SHA-224/SHA-256), HMAC-MD5, HMAC-SHA1, HMAC-SHA2, and encryption/decryption mechanisms.

Flexible RF Output Modes

Three RF output modes of PCB, IPEX and half-hole RF pin may satisfy for your any requirement.

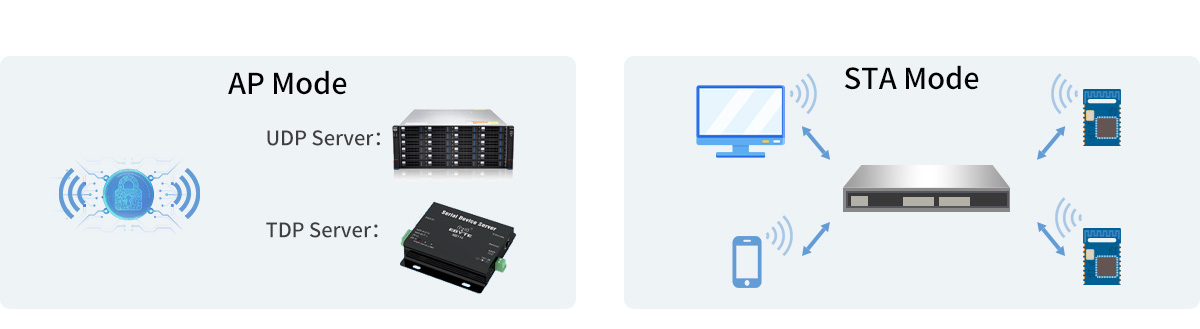

- Normal Functions -

AP mode:                                                                                                                           STA mode:

· Preset SSID and password                                                                                                    · Scan the hot spot

· Optional Socket: UDP server or TDP server                                                                    · Connect to the specified hot spot

AP Mode vs STA Mode



Wireless SoC:

  • 166 MHz ARM® Cortex®-M3 processor
  • TX power:
    • +17 dBm (IEEE 802.11 B, 11 Mbps @ CCK)
    • +13.5 dBm (IEEE 802.11 G, 54 Mbps @ OFDM)
    • +13.5 dBm (IEEE 802.11 N, HT20 @ MCS7)
    • +13.5 dBm (IEEE 802.11 N, HT40 @ MCS7)
  • Sensitivity:
    • -82 dBm (IEEE 802.11 B, 11 Mbps @ CCK)
    • -69 dBm (IEEE 802.11 G, 54 Mbps @ OFDM)
    • -66 dBm (IEEE 802.11 N, HT20 @ MCS7)
    • -63 dBm (IEEE 802.11 N, HT40 @ MCS7)
  • Memory
    • 1 MB flash
    • 512 kB RAM
    • 1 MB ROM
  • Data Rate:
    • 72.2 Mbps PHY rate (@ 40 MHz bandwidth)
    • 150 Mbps PHY rate (@ 20 MHz bandwidth)
  • Security:
    • Wi-Fi WEP, WPA, WPA2, WPS
    • Security engine: MD5, SHA-1, SHA2-256, DES, 3DES, AES


Certificate:

  • FCC
  • RoHS



Standards supported:

  • 802.11b/g/n compatible WLAN
  • 802.11e QoS Enhancement (WMM)
  • 802.11i (WPA, WPA2). Open, shared key, and pair-wise key authentication services
  • Wi-Fi WPS support
  • Wi-Fi direct support
  • Light weight TCP/IP protocol

Operating Range:

  • Supply voltage range 3.0 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C
  • Frequency: 2401 MHz ~ 2484 MHz

Rich Peripherals:

  • SDIO
  • UART
  • SPI
  • I²S
  • I²C
  • NFC
  • PWM



Realtek RTL87xx Series Wi-Fi Modules
Part Number RF-WM-11AFB1 RF-WM-10AFB1 RF-WM-20CMB1
Photo RealTek RTL8711AF WLAN Wi-Fi Module RF-WM-11AFB1 RF-WM-10AFB1 Wifi module RF-WM-20CMB1 RTL8720CM Wi-Fi BT Combo Module
IC RTL8711AF RTL8710AF RTL8720CM
Core 166 MHz ARM® Cortex®-M3 83 MHz ARM® Cortex®-M3 100 MHz Real-M300 KM4
Antenna PCB/IPEX/Half-hole PCB/IPEX/Half-hole PCB/IPEX/Half-hole
RAM SRAM: 512 KB SDRAM: 2 MB SRAM: 512 KB SRAM: 256 KB PSRAM: 4 MB
Flash 1 MB (IC embedded) 1 MB (IC embedded) 2 MB (Module embedded)
Protocols 802.11 b/g/n 1x1, 2.4 GHz; 802.11e QoS Enbancemant (WMM); 802.11i (WPA, WPA2) 802.11 b/g/n 1x1, 2.4 GHz; 802.11e QoS Enbancemant (WMM); 802.11i (WPA, WPA2) 802.11 b/g/n 1x1, 2.4 GHz; 802.11e QoS Enbancemant (WMM); 802.11i (WPA, WPA2) BLE4.2
Power Supply 2.3 V ~ 3.6 V, recommend to 3.3 V 2.3 V ~ 3.6 V, recommend to 3.3 V 2.3 V ~ 3.6 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power 11b(11 Mbps@CCK): +17.0 dBm 11g (54 Mbps@OFDM): +13.5 dBm 11n (HT20@MCS7): +13.5 dBm 11n (HT40@MCS7): +13.5 dBm 11b(11 Mbps@CCK): +17.0 dBm 11g (54 Mbps@OFDM): +13.5 dBm 11n (HT20@MCS7): +13.5 dBm 11n (HT40@MCS7): +13.5 dBm Wi-Fi: 11b(11 Mbps@CCK): +17.0 dBm 11g(54 Mbps@OFDM): +15.0 dBm 11n(72 Mbps@MCS7): +13.0 dBm BLE: +4.5 dBm
Receiving Sensitivity 11b(11 Mbps@CCK): -82 dBm 11g (54 Mbps@OFDM): -69 dBm 11n (HT20@MCS7): -66 dBm 11n (HT40@MCS7): -63 dBm 11b(11 Mbps@CCK): -82 dBm 11g (54 Mbps@OFDM): -69 dBm 11n (HT20@MCS7): -66 dBm 11n (HT40@MCS7): -63 dBm Wi-Fi: 11b(11 Mbps@CCK): -86dBm 11g(54 Mbps@OFDM): -73dBm 11n(72 Mbps@MCS7): -69dBm BLE: -96 dBm
Security Wi-Fi WPA, WPA2, WPS Crypto engine: MD5, SHA-1, SHA2-224, SHA2-256, HMAC, AES, DES, 3DES Wi-Fi WPA, WPA2, WPS Crypto engine: MD5, SHA-1, SHA2-224, SHA2-256, HMAC, AES, DES, 3DES Wi-Fi WEP, WPA, WPA2, WPS Crypto engine: MD5, SHA-1, SHA2-224, SHA2-256, HMAC, AES
Peripheral UART, SPI, I2C, I2S, SDIO, NFC, PWM, GPIO UART, SPI, I2C, I2S, SDIO, GPIO UART, SPI, I2C, I2S, SDIO, PWM, GPIO, GDMA
GPIO 21 21 21
Working Temperature -20 ℃ ～ +85 ℃ -20 ℃ ～ +85 ℃ -20 ℃ ～ +85 ℃
Storage Temperature -55 ℃ ～ +125 ℃ -55 ℃ ～ +125 ℃ -55 ℃ ～ +125 ℃
Transmission Range 200 m (PCB antenna) 200 m (PCB antenna) Wi-Fi: 200 m (PCB antenna) BLE: 70 m ((PCB antenna)
Dimension (mm) 23.0 × 20.0 × 2.4 23.0 × 20.0 × 2.4 23.0 × 20.0 × 2.4
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
Functions Support AP/STA, Support transparent transmission protocol Support AP/STA, Support transparent transmission protocol Wi-Fi BLE Combo module, Support Wi-Fi transparent transmission protocol
