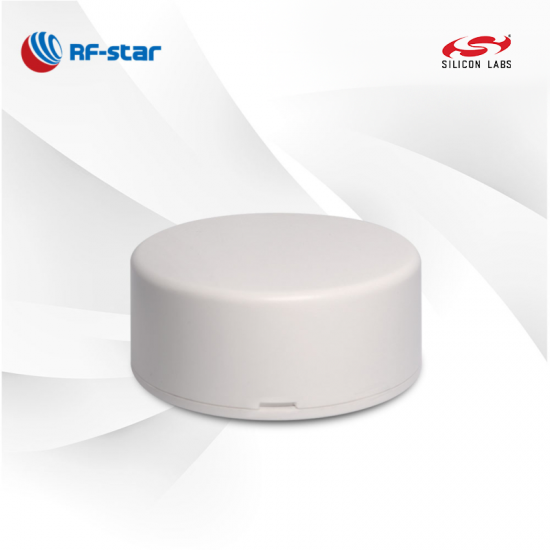

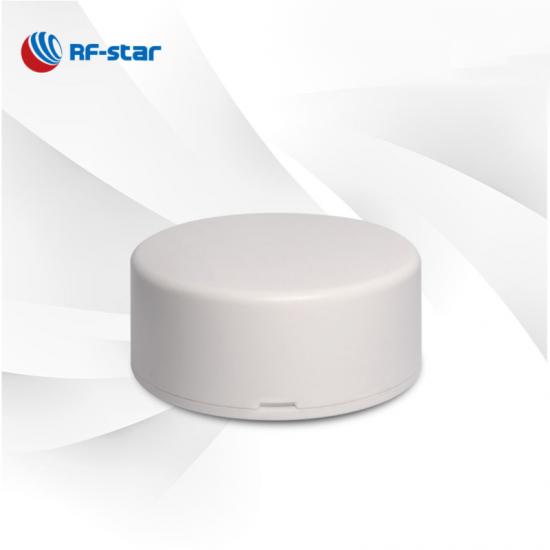

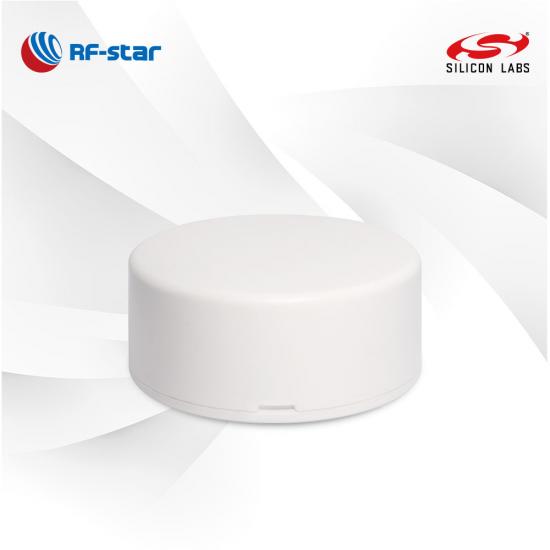

Bluetooth 5.3 Beacon module RF-B-SR1

  • Bluetooth 5.3 Low Energy Beacon
  • Bluetooth 5.3 Low Energy Beacon
  • Bluetooth 5.3 Low Energy Beacon
  • Bluetooth 5.3 Low Energy Beacon
  • Bluetooth 5.3 Low Energy Beacon

Bluetooth 5.3 Beacon module RF-B-SR1

RF-B-SR1 Beacon device is designed for broadcasting packets with RSSI, MAC address and other info you can self-defined. CR2477 coin battery makes it a longer life with a certain advertising interval.

  • P/N:

    RF-B-SR1

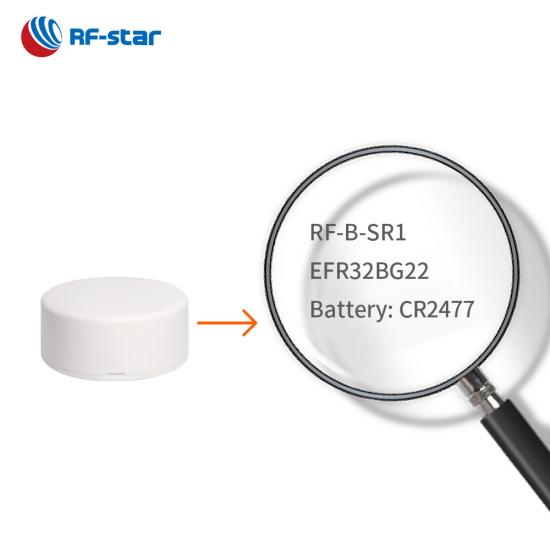

  • SoC:

    EFR32BG22C224

  • Processor:

    76.8 MHz ARM® Cortex®-M33

  • Protocols:

    Bluetooth 5.3 low energy

  • Working Frequency:

    2402 MHz ~ 2480 MHz

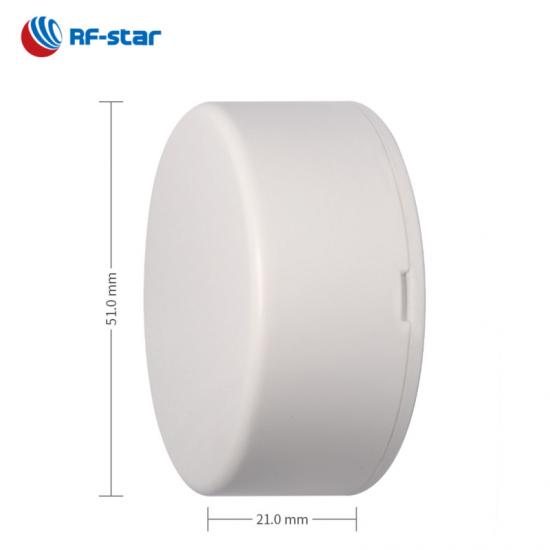

  • Package (mm):

    51.0 mm (φ) ×21.0 mm

  • Features:

    OTA, authentication, encryption, 3M adhesive, setting APPs available.

  • Max. TX Power:

    +6 dBm

  • Transmission Range:

    Up to 120 meters in an open-air
Inquiry Now

RF-B-SR1 is a Beacon device with ultra-low power consumption. The Beacon has several broadcasting frame format including iBeacon and Eddystone (UID, URL, TLM). UP to 6 dBm TX power support a longer transmission coverage.

RF-star Bluetooth Beacon RF-B-SR1

- Applications -

· Positioning

· Patrolling check-in

· Marketing info push

· Museum guide

· Car location in a parking lot

· Zoo navigation

Applications of RF-star Bluetooth Beacon RF-B-SR1

Related Resources:

Five Minutes to Know about Beacon

New Beacon Device RF-B-SR1

Battery Life

  • Replaceable CR2477
  • Up to 5.9 years @ 1 s broadcast interval

Compatibility

  • Supported iOS 7.0+ and Android 4.3+ system
  • Compatible with all BLE 4.2 and BLE 5.0 devices


Device Management

  • Over-the-air (OTA) updates
  • Reserved J-Link pins


Connectable Mode

  • Connectable Mode for configuration
  • Non-connectable mode for advertising

Configurable Parameters

  • UUID, Major, Minor, Device name, Connection password etc.
  • Tx power, advertising interval, RSSI etc.
  • APP: Beaconsetting and RF-star Beacon for iOS and Android


Security


  • Authentication key: 6 characters
  • Optional encryption advertising data


Mounting


  • 3M adhesive for mounting to wall
  • Waterproof level: IP65
Low- Power Beacon Devices
Part Number RF-B-SR1 RF-B-AR1 RF-B-AR4
IP Grade IP65 IP65 IP65
Material ABS ABS ABS
Color White White White
Dimension (mm) Φ51 x 21 Φ51 x 21 Φ51 x 21
Weight 29.1 g 29.6 g 29.9 g
Power Supply 1.71 V ~ 3.8 V 1.7 V ~ 3.3 V 1.7 V ~ 3.3 V
IC EFR32BG22C224F512GM32-C ATM2202 ATM2202
Sensor N/A N/A Accelerometer, Temperature & Humidity
Assmebly 3M Adhesive Mounting 3M Adhesive Mounting 3M Adhesive Mounting
Power Comsumption 15.46 μA @ 1 s & 0 dBm 7.6 μA @ 1 s & 0 dBm 21.88 μA @ 1 s & 0 dBm
Battery CR2477 CR2477 CR2477
Battery Capacity 1000 mAh 1000 mAh 1000 mAh
Battery Life 5.9 years 10 years 5 years
Working Temperature -20 ℃ ~ +60 ℃ -20 ℃ ~ +60 ℃ -20 ℃ ~ +60 ℃
Storage Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Protocol BLE5.3 BLE5.0 BLE5.0
Max. TX Power +6 dBm +4 dBm +4 dBm
Broadcast Interval 200 ms ～ 10 s, Default by 1 s 200 ms ～ 10 s, Default by 1 s 200 ms ～ 10 s, Default by 1 s
Transmission Range 70 m 50 m 50 m
Safety Support password authentication, can set connectable and non-connectable mode, anti-malicious connections
Support System Compatible with iOS 7.0+ and Android 4.3+ system
Applications Personnel management, asset management, indoor and outdoor navigation, information push
