Hot Sale CC1310 Sub-1 GHz RF Modules Supporting 868 MHz & 915 MHz RF-SM-1044B4

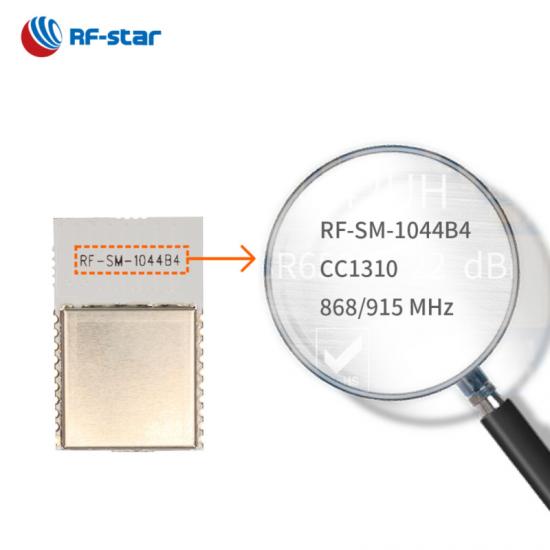

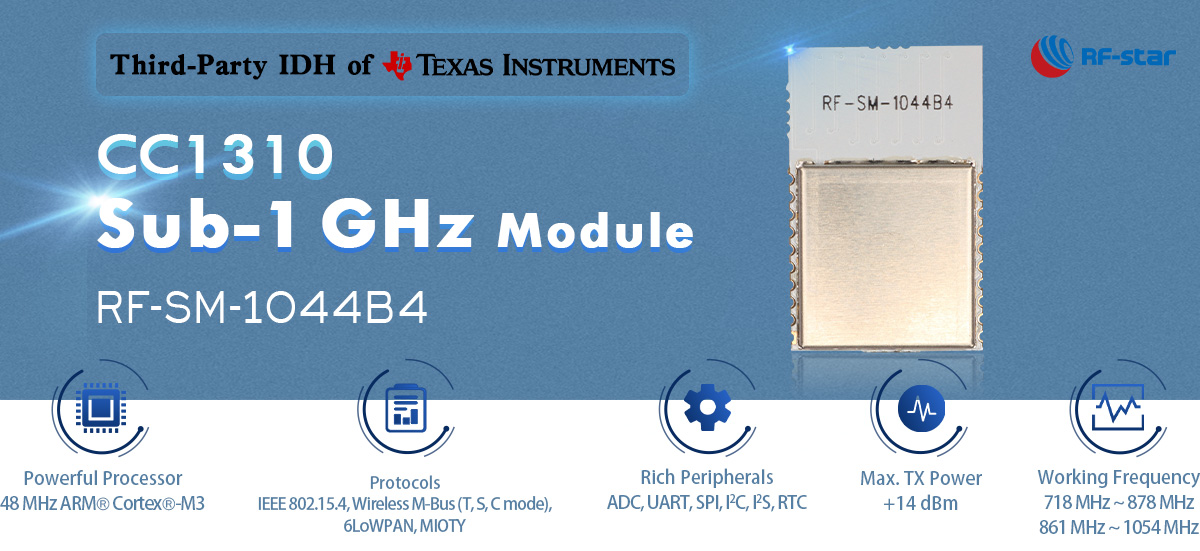

RF-SM-1044B4 is a wireless RF module working under the Sub 1 GHz frequency, especially recognized for 868 MHz or 915 MHz transmitter and transceiver. The compact size makes this module popular in the battery-powered application. RF-SM-1044B4 will be an ideal module for you to reach a lower power consumption and longer transmission range.

  • P/N:

    RF-SM-1044B4

  • SoC:

    CC1310

  • Processor:

    48 MHz Arm® Cortex®-M3

  • Protocols:

    IEEE 802.15.4, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY

  • Working Frequency:

    718 MHz ~ 878 MHz, 861 MHz ~ 1054 MHz

  • Package (mm):

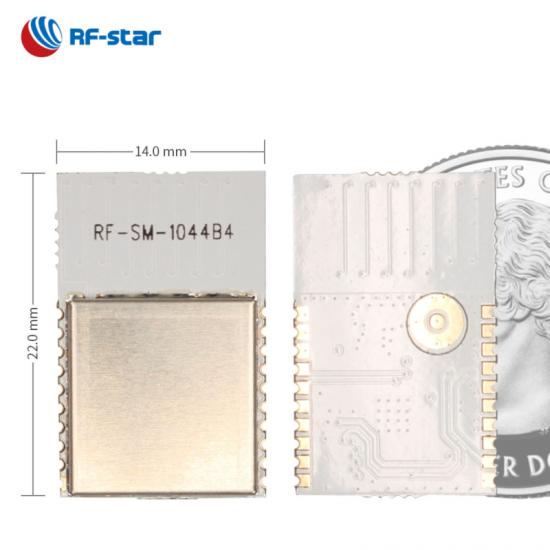

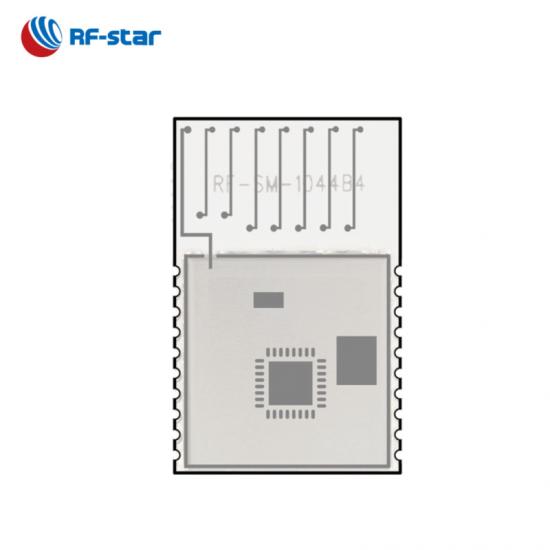

    22.0 × 14.0 × 2.2, half-hole, 1.27 pitch, 20-pin

  • Features:

    Compact size

  • GPIO:

    12

  • Max. TX Power:

    +14 dBm

  • Transmission Range:

    1500 m
Inquiry Now

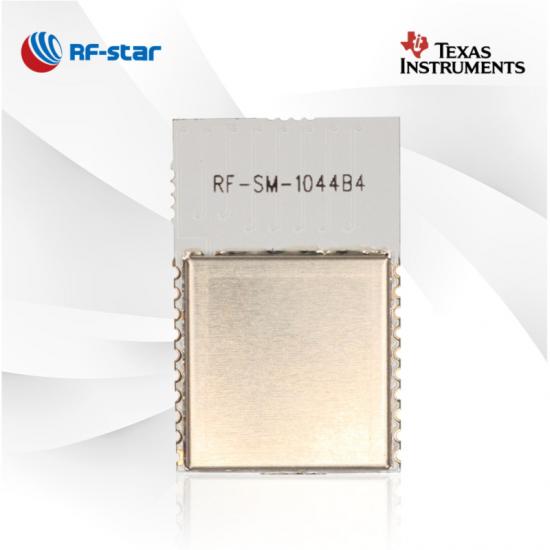

RF-SM-1044B4 is a wireless RF module based on TI CC1310. The module is made up of a 24.0 MHz crystal, a balun, a bandpass filter, an antenna matching and a high-performance PCB onboard antenna. This main processor of 48 MHz Arm® Cortex®-M3 makes this Sub-1G module have more chances to work in a complex environment. And the transparent transmission protocol of RF-star also enables this transmitter and transceiver to work as a serial tool to simplify the development work and have a quick start for the end device design. It is welcomed in these applicaitons, such as home and building automation, wireless alarm and security systems, industrial monitoring and control, smart grid and automatic meter reading and wireless sensor networks, etc.

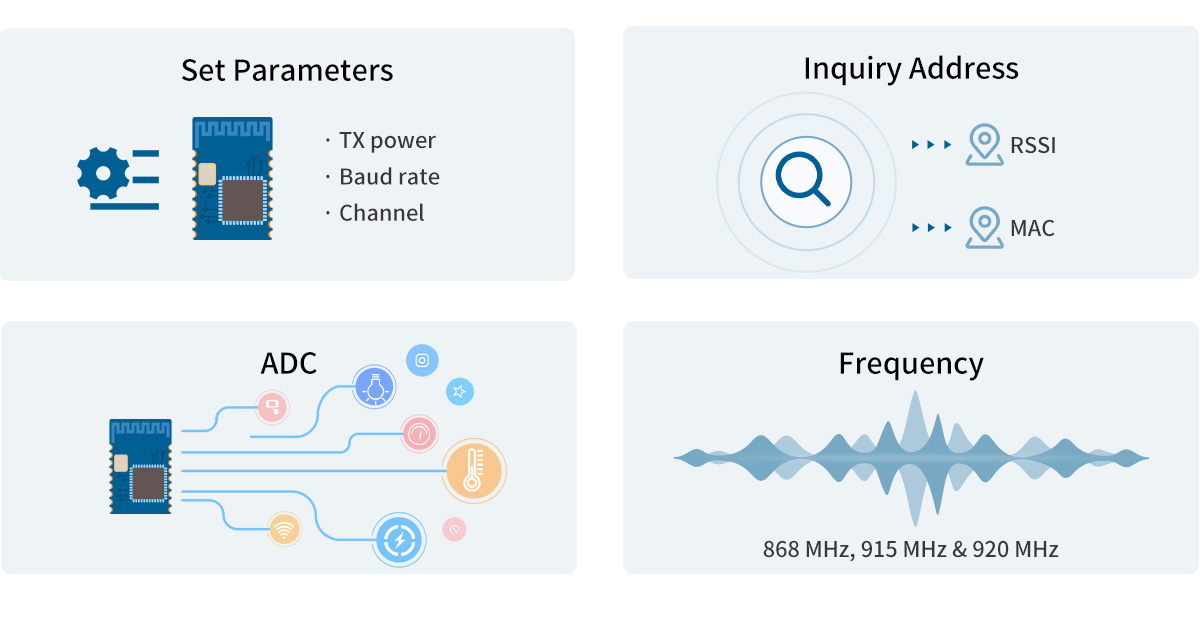

- Transparent Transmission Protocol -

· Set parameters: TX power, Baud rate, Channel

· Inquiry RSSI and MAC address

· ADC acquisition enabled

· Frequency: 868 MHz, 915 MHz and 920 MHz.


RF-SM-1044B4 CC1310 module support Transparent Transmission Protocol



Wireless SoC:


  • 48 MHz ARM® Cortex®-M3 processor
  • TX power: Up to +14 dBm
  • Sensitivity:
    • -124 dBm @ Long-Range Mode
    • -110 dBm @ 50 kbps
  • Memory
    • 128 kB flash
    • 8 kB SRAM
  • Data Rate:
    • 625 bps
    • 50 kbps
    • 200 kbps


Features:


  • AES-128 security
  • 30 GPIOs

Operating Range:


  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C
  • Frequency: 718 MHz ~ 878 MHz, 861 MHz ~ 1054 MHz


Rich Peripherals:


  • ADC
  • UART
  • SPI
  • I²C
  • I²S
  • RTC


TI CC131x Series Sub-1G Modules
Part Number RF-TI1352P2 RF-TI1352P1 RF-TI1352B1 RF-SM-1277B2 RF-SM-1277B1 RF-SM-1044B4 RF-SM-1044B2 RF-SM-1044B1 RF-SM-1077B2 RF-SM-1077B1
Photo TBD
IC CC1352P7 CC1352P CC1352R CC1312R CC1312R CC1310F128RSM CC1310F128RSM CC1310F128RSM CC1310F128RGZ CC1310F128RGZ
Core 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3
Antenna IPEX Half-hole interface IPEX IPEX/Half-hole interface IPEX/Half-hole interface PCB Half-hole interface PCB IPEX/Half-hole interface IPEX/Half-hole interface
RAM 152 KB 88 KB 88 KB 88 KB 88 KB 28 KB 28 KB 28 KB 28 KB 28 KB
Flash 704 KB 352 KB 352 KB 352 KB 352 KB 128 KB 128 KB 128 KB 128 KB 128 KB
Protocols Thread, ZigBee, Matter, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) IEEE 802.15.4g, IPv6-enabled smart objects(6LoWPAN), MIOTY®, Wireless M-Bus(T, S, C mode), Wi-SUN®, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, IPv6-enabled smart objects(6LoWPAN), MIOTY®, Wireless M-Bus(T, S, C mode), Wi-SUN®, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz)
Power Supply 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V
Frequency 800 MHz ～ 928 MHz, 2.4 GHz 800 MHz ～ 928 MHz, 2.4 GHz 800 MHz ～ 928 MHz, 2.4 GHz 431 MHz ~ 527 MHz 779 MHz ~ 930 MHz 779 MHz ~ 930 MHz 779 MHz ~ 930 MHz 779 MHz ~ 930 MHz 431 MHz ~ 527 MHz 779 MHz ~ 930 MHz
Max. TX Power +20 dBm +20 dBm +14 dBm @ Sub-1 GHz +5 dBm @ 2.4 GHz +13 dBm +14 dBm +14 dBm +14 dBm +14 dBm +15 dBm +14 dBm
Receiving Sensitivity –121 dBm @Sub-1G (Long-Range Mode) –110 dBm @ 50 Kbps Sub-1G –104 dBm @125 kbps LE Coded PHY –121 dBm @Sub-1G (Long-Range Mode) –110 dBm @Sub-1G (50 Kbps) –105 dBm @125 kbps LE Coded PHY –121 dBm @Sub G (Long-Range Mode) –110 dBm @Sub G (50 Kbps) –105 dBm @125 kbps LE Coded PHY –121 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –121 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps)
GPIO 23 23 28 30 30 12 7 8 30 30
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 180 m @ 1M PHY (external PCB antenna) 230 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 1400 m @ Sub-1G (external glue stick antenna) 120 m @ 1M PHY (external PCB antenna) 180 m @ LE Coded PHY (external PCB antenna) 900 m @ 802.15.4 (external glue stick antenna) 900 m @ Sub-1G (external glue stick antenna) 1000 m (external glue stick antenna) 1000 m (external glue stick antenna) 720 m 1000 m (external glue stick antenna) 720 m 1000 m (external glue stick antenna) 1000 m (external glue stick antenna)
Dimension (mm) 25.0 x 16.4 x 2.2 26.5 x 16.8 x 2.2 26.0 x 18.0 x 2.3 26.0 x 18.0 x 2.3 22.0 × 14.0 × 1.85 12.5 × 9.0 × 1.8 22.0 × 14.0 × 1.8 26.0 x 18.0 x 2.3 26.0 x 18.0 x 2.3
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
Functions Wireless M-Bus, energy-harvesting Smart agriculture, sensor control Smart grid, industrial monitoring and control Support DMM, longer transmission range Support DMM, longer transmission range On-board PCB antenna Ultra-small dimension, feasible for external antennas Plug pins for easy embed Longer transmission range Longer transmission range
